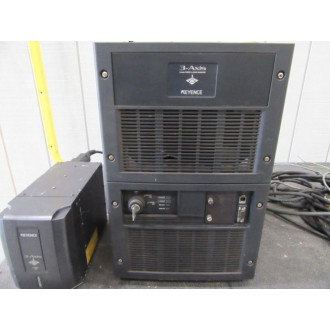

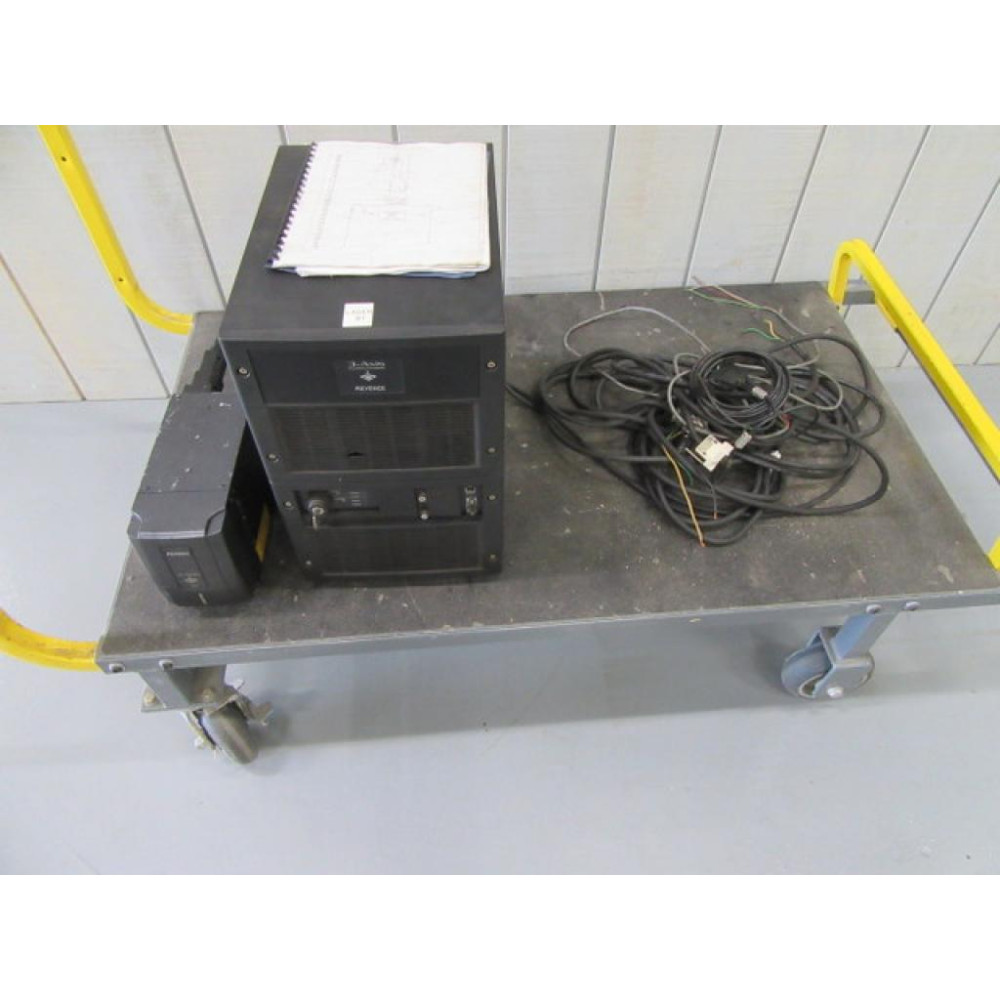

Keyence MD-F3100C 3Axis-Fiber Laser Marker - Used
Write your review
$6,233.33
MD-F3100C
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
Keyence MD-F3100C 3Axis-Fiber Laser Marker - Used
PN: MD-F3100C
MDF3100C
Unit Powers On
PN: MD-F3100C
MDF3100C
- MDF3100C
- 3-Axis Fiber Laser
- Type: 30 W Type Standard Area Type Main Unit (Controller + Head)
- Marking Method: XYZ 3-Axis Simultaneous Scanning Method
- Marking Laser: Yb: Fiber Laser, Class 4 Laser Product
- Wavelength: 1090 nm
- Output: 30 W
- Pulse Frequency: 60 To 120 kHz
- Guide Laser/Working Distance Pointer: Semiconductor Laser, Wavelength: 655 nm, Output: 1.0 mW
- Marking Area: 20 X 120 X 42MM
- Standard Working Distance: 168MM (+/- 21MM_
- Scan Speed: 12,000MM 472.44"/s Max.
- Character Type: Font, Barcode, 2D code, GS1 DataBar, Logo, Machinery Operation
- Character Size: 0.1 To 120MM
- I/O: Terminal Block I/O, MIL Connector I/O, Contactor Control I/O
- Interface: RS-232c, RS-422A, USB 2.0, Ethernet (100BASE-TX/10BASE-T)
- Rated Voltage And Power Consumption: Single-Phase 100 To 120/200-To 240 VAC +/- 10%, 50/60 Hz, Max. 550VA
- Not Affiliated With Keyence Corporation; Sold As An Independent Third-Party Distributor
- This Product Is Genuine But Not Covered By Original Manufacturers Warranty
Unit Powers On
