Allen Bradley 836T-T351JX121X9 Pressure Control

Allen Bradley 836T-T351JX121X9 Pressure Control

PN: 836T-T351JX121X9
836TT351JX121X9

Pressure Control
Bulletin 836T

Adjustable Range:
140-1000 PSI

Adjustable Differential:
70-175 PSI

Type 4,13
IP66

Pressure Unit/PSI/BAR(100's kPa):
Differential '1'/70-175/4.9-12.2
Operating Range '2'/140-1000/9.8-70
Max Pressure/10000/700
1=Approximate Mid-Range Values
2=On Increasing Pressure

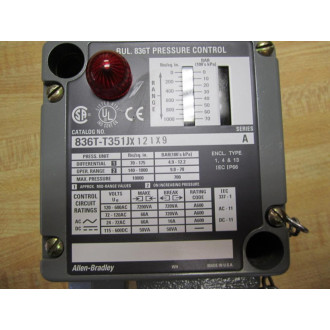

Control Circuit Ratings AC/DC
(Volts Ue/Make/Break/Rating Code)
120-600AC/7200VA/720VA/A600
72-120AC/60A/720VA/A600
24-72AC/60A/10VA/A600
115-600DC/50VA/50VA/-

IEC 337-1
AC-11
DC-11

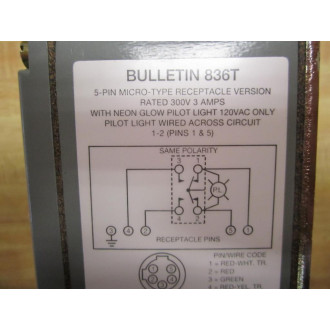

5-Pin Micro-Type Receptacle Version Rated 300V 3 Amps
With Neon Glow Pilot Light 120VAC Only
Pilot Light Wired Across Circuit

5 Pin Threaded Male Connection
1/4" NPT Thread Port

UPC: 10662468587171


Series ARev ASJG648/0038(19)
