Allen Bradley 836T-T253JX81X15 Pressure Control 836TT253JX81X15 Series A

Allen Bradley 836T-T253JX81X15 Pressure Control 836TT253JX81X15 Series A

PN: 836T-T253JX81X15
836TT253JX81X15

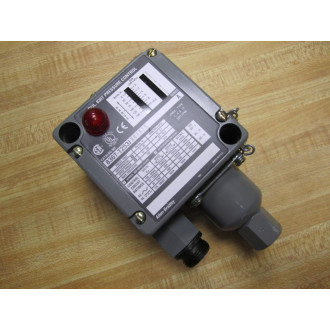

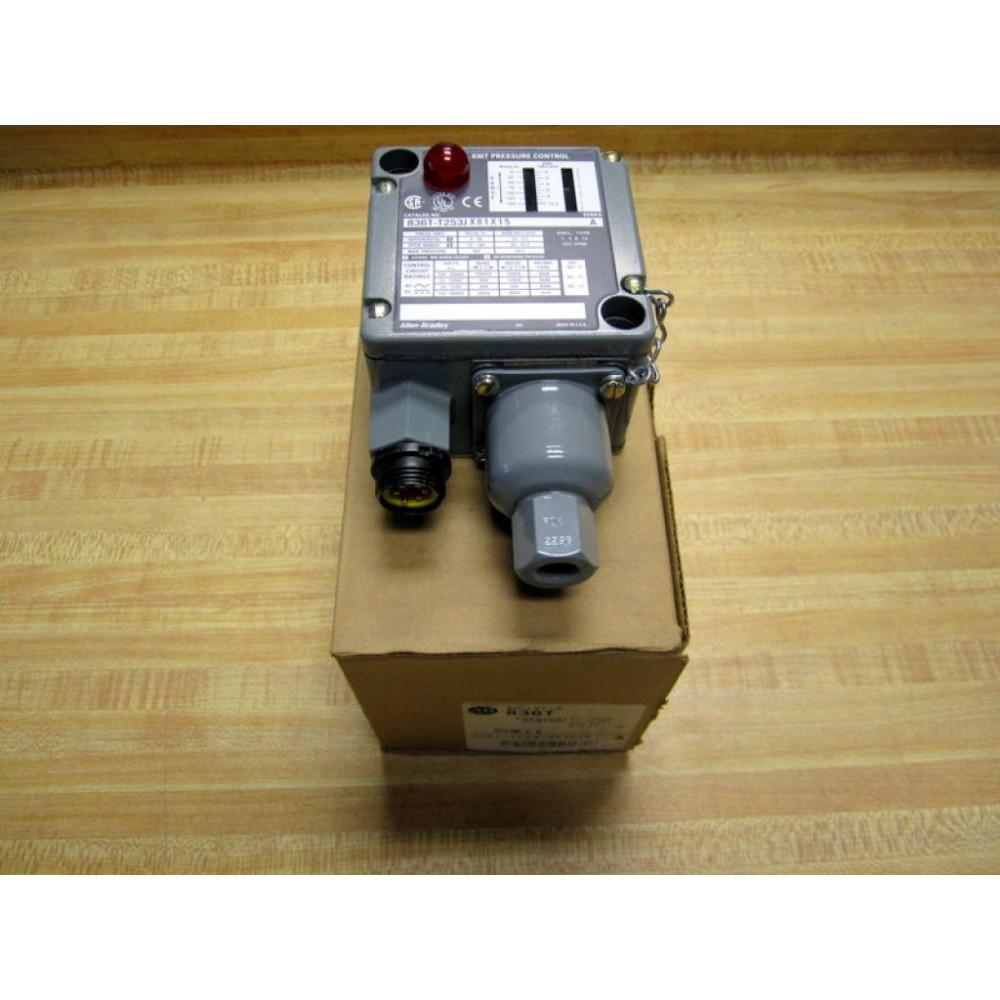

Pressure Control

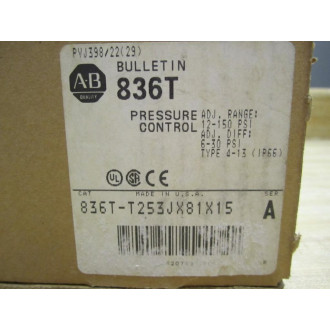

Bulletin 836T

Adjustable Range:
12-150 PSI

Adjustable Differential:
6-30 PSI

Type 4,13
IP66

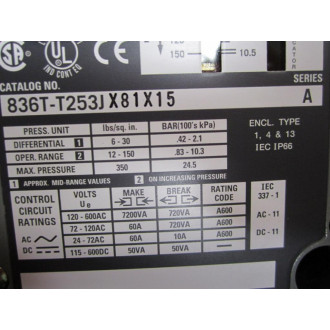

Pressure Unit/PSI/BAR(100's kPa):
Differential '1'/6-30/.42-2.1
Operating Range '2'/12-150/.83-10.3
Max Pressure/350/24.5
1=Approximate Mid-Range Values
2=On Increasing Pressure

Control Circuit Ratings AC/DC
(Volts Ue/Make/Break/Rating Code)
120-600AC/7200VA/720VA/A600
72-120AC/60A/720VA/A600
24-72AC/60A/10VA/A600
115-600DC/50VA/50VA/-

IEC 337-1
AC-11
DC-11

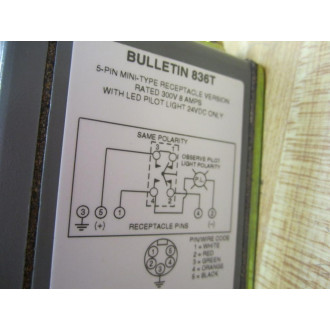

5-Pin Mini-Type Receptacle Version Rated 300V 8 Amps

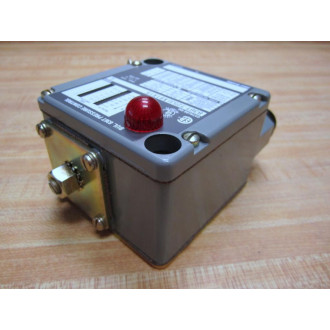

With LED Pilot Light 24VDC Only

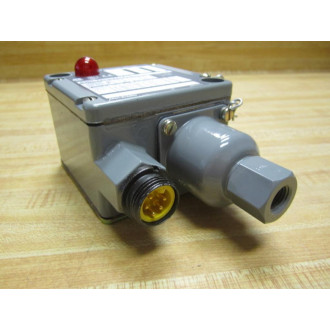

5 Pin Threaded Male Connection

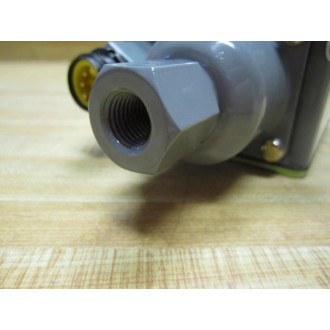

1/4" NPT Thread Port


Series A PVJ398/22(29)
