Dwyer 629-05-CH-P2-E5-S1 Pressure Transmitter 62905CHP2E5S1
Write your review
$215.77
629-05-CH-P2-E5-S1
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!

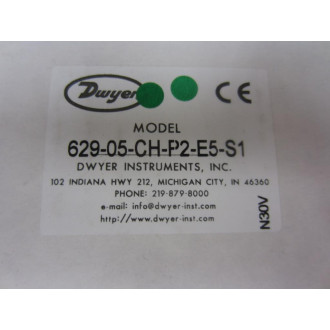

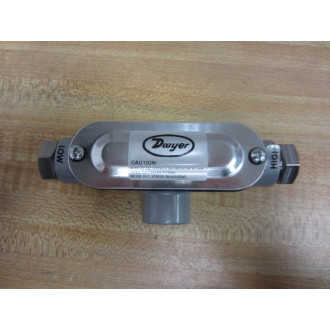

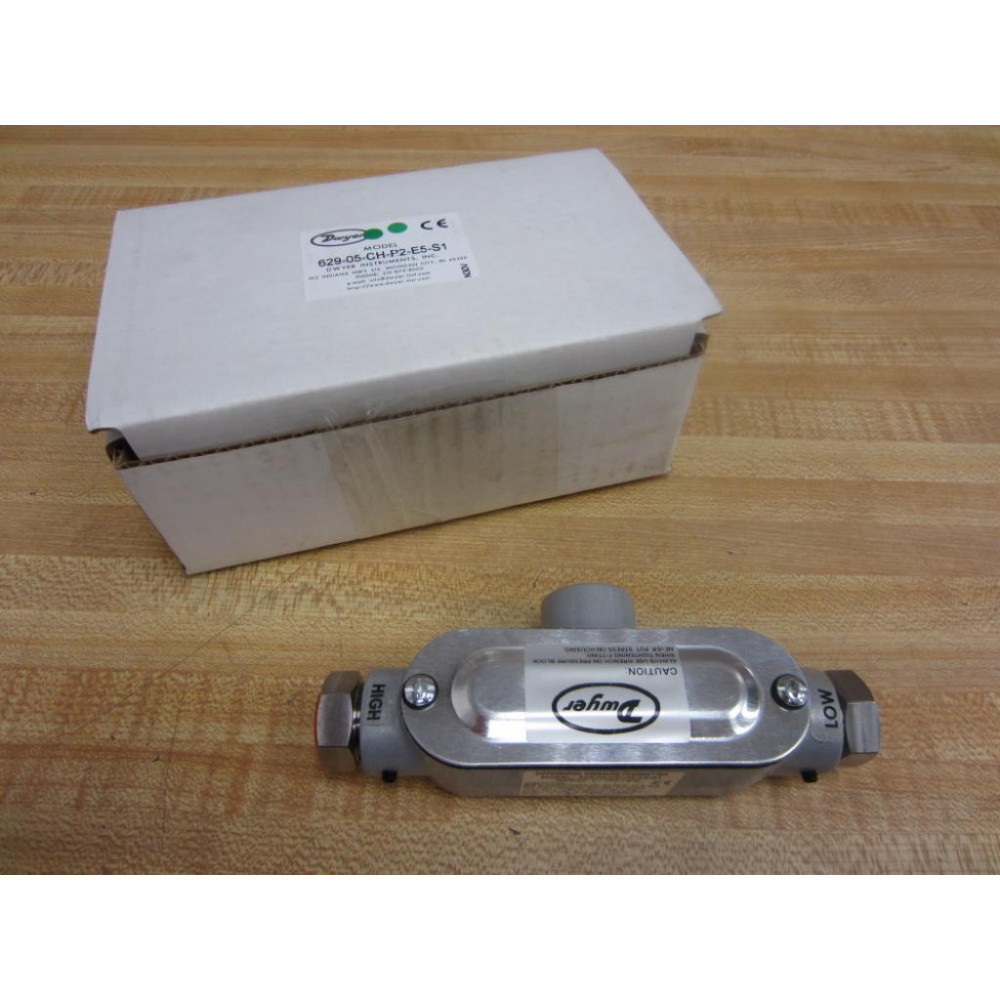

Dwyer 629-05-CH-P2-E5-S1 Pressure Transmitter 62905CHP2E5S1
PN: 629-05-CH-P2-E5-S1
62905CHP2E5S1

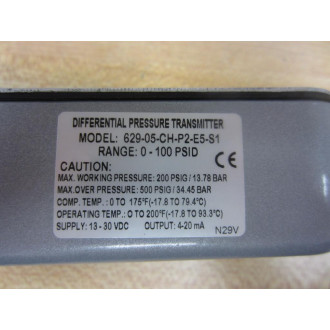

Differential Pressure Transmitter
Model: 629-05-CH-P2-E5-S1
Range: 0-100 PSID
Max Working Pressure: 200 PSIG/13.78 BAR
Max Over Pressure: 500 PSIG / 34.45 BAR
Comp Temp: 0 To 175°F (-17.8 To 79.47Deg;C)
Operating Temp: 0 To 200°F (-17.8 To 93.3°C)
Supply: 13-30 VDC
Output: 4-20mA
PN: 629-05-CH-P2-E5-S1
62905CHP2E5S1
Differential Pressure Transmitter
Model: 629-05-CH-P2-E5-S1
Range: 0-100 PSID
Max Working Pressure: 200 PSIG/13.78 BAR
Max Over Pressure: 500 PSIG / 34.45 BAR
Comp Temp: 0 To 175°F (-17.8 To 79.47Deg;C)
Operating Temp: 0 To 200°F (-17.8 To 93.3°C)
Supply: 13-30 VDC
Output: 4-20mA
