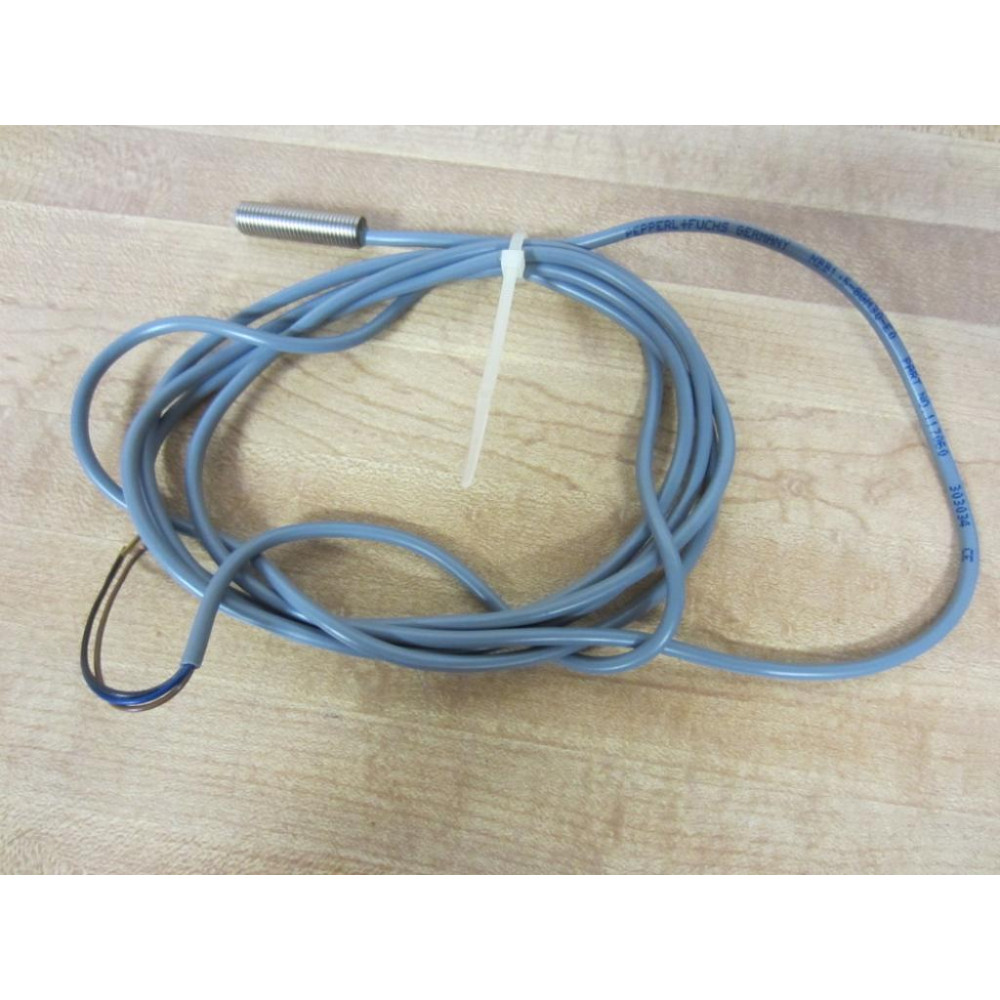

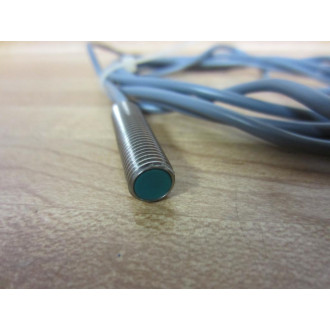

Pepperl + Fuchs 117060 Inductive Sensor NBB1,5-8GM30-E0 - New No Box

Pepperl + Fuchs 117060 Inductive Sensor NBB1,5-8GM30-E0 - New No Box

PN: 117060

Assured Operating Distance:	0...1.215 mm
Installation:	Flush
No-Load Supply Current:	≤ 10 mA
Operating Current:	0...200 mA
Operating Voltage:	10...30 V
Output Polarity:	DC
Rated Operating Distance:	1.5 mm
Switching Element Function:	NPN NO
Switching Frequency:	0...5000 Hz
Voltage Drop:	≤ 2 V

Inductive Sensor

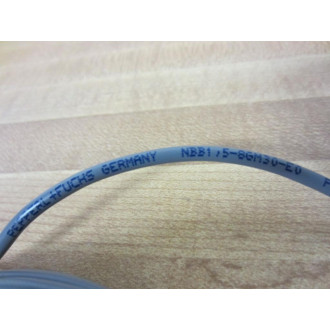

NBB1,5-8GM30-E0
Reverse Polarity Protected
Short-Circuit Protected
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C

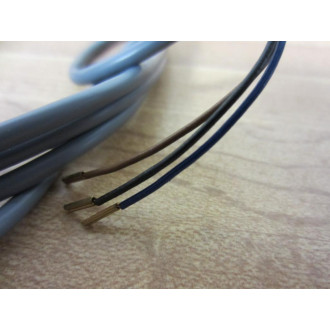

3 Wire

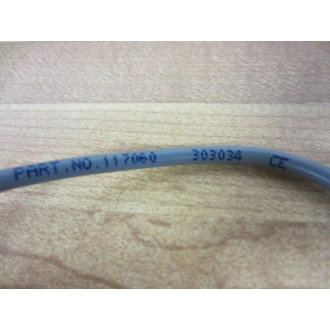

303034 CE
