Allen Bradley 160-BA01NSF1P1 Controller 160BA01NSF1P1 Series B - Used
Write your review
$75.77
160-BA01NSF1P1
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!

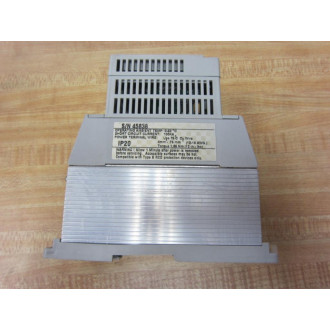

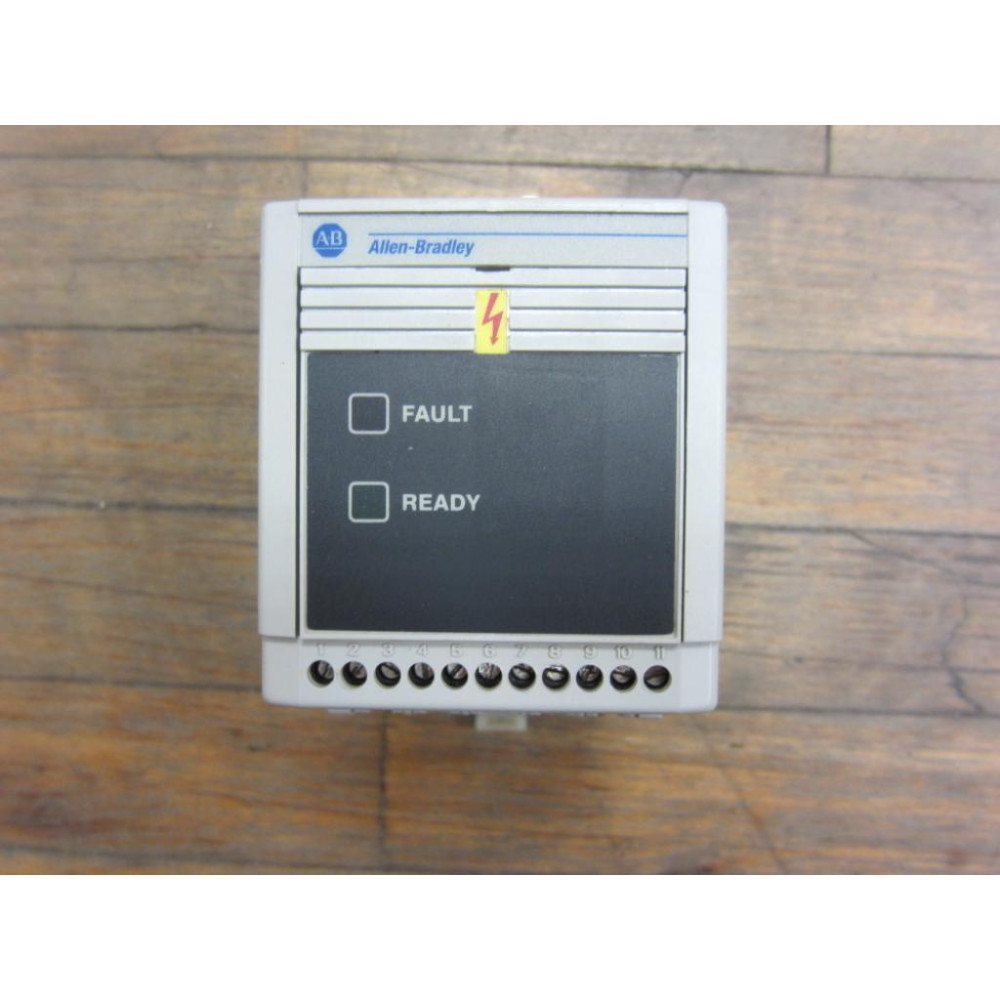

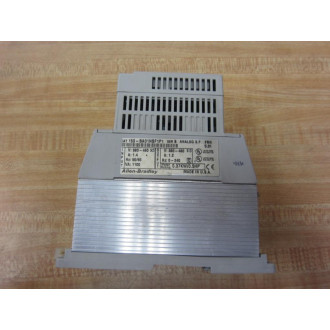

Allen Bradley 160-BA01NSF1P1 Controller 160BA01NSF1P1 Series B - Used
PN: 160-BA01NSF1P1
160BA01NSF1P1
# Speed Controller 1/2 HP,
380-460V AC 3 Phase Input, Open Style, Analog Signal Follower, Program Keypad

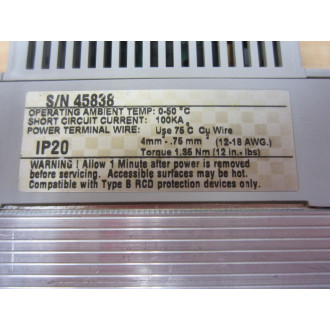

Operating Ambient Temp: 0-50 °C
Short Circuit Current: 100Ka
Power Terminal Wire: Use 75°C Cu Wire
4mm-.75mm² (12-18 AWG)
Torque 1.35 Nm (12in-lbs)
IP20
FRN 5.01
Analog: S.F.

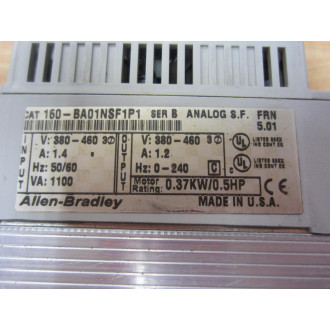

Input: V: 330-460 3ø
A: 1.4
Hz: 50/60
VA: 1100
Output:
V: 380-460 3ø
A:1.2
Hz: 0-240
Motor Rating: 0.37KW/0.5Hp
Listed 966X Ind Cont Eq
Series B
PN: 160-BA01NSF1P1
160BA01NSF1P1
# Speed Controller 1/2 HP,
380-460V AC 3 Phase Input, Open Style, Analog Signal Follower, Program Keypad
Operating Ambient Temp: 0-50 °C
Short Circuit Current: 100Ka
Power Terminal Wire: Use 75°C Cu Wire
4mm-.75mm² (12-18 AWG)
Torque 1.35 Nm (12in-lbs)
IP20
FRN 5.01
Analog: S.F.
Input: V: 330-460 3ø
A: 1.4
Hz: 50/60
VA: 1100
Output:
V: 380-460 3ø
A:1.2
Hz: 0-240
Motor Rating: 0.37KW/0.5Hp
Listed 966X Ind Cont Eq
Series B
