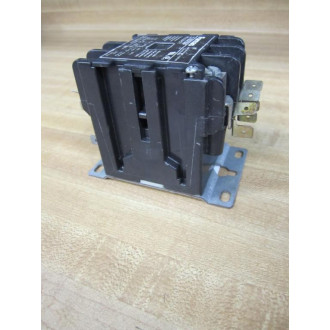

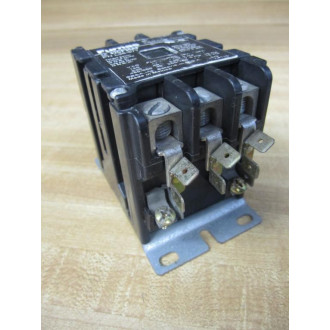

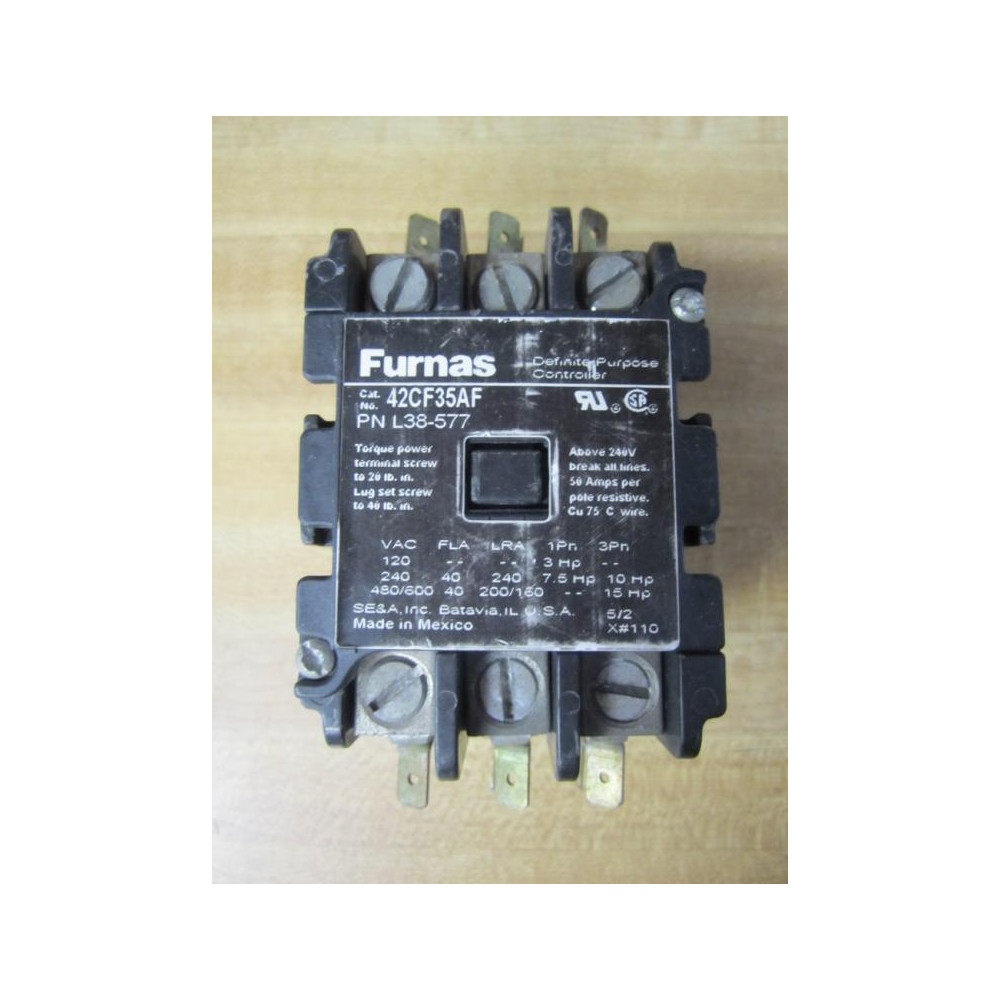

Siemens 42CF35AF Definite Purpose Controller Furnas PN L38-577 - Used

Siemens 42CF35AF Definite Purpose Controller Furnas / PN L38-577 - Used

PN: 42CF35AF

Enclosure: Open
Power Poles : 3
Amp Rating: FL 40 Res 50
Coil Voltage: 120V 60 Hz, 110V 50HZ

Torque Power Terminal Screw In 20 Lb. In. Lug Set Screw To 40 Lb. In.
Above 240V Break All Lines. 50 Amps Per Pole Resistive. Cu 75 C° Wire.

VAC FLA LRA 1PH 3HP
120 -- -- 3HP --
240 40 240 7.5HP 10HP
480/600 40 200/160 -- 20HP

75D70545F 110V 50HZ 120V 60HZ
D70638-011
N80538
255

UPC: 783087144958
Obsolete

Replaces CDM4013


Furnas / PN L38-5774
