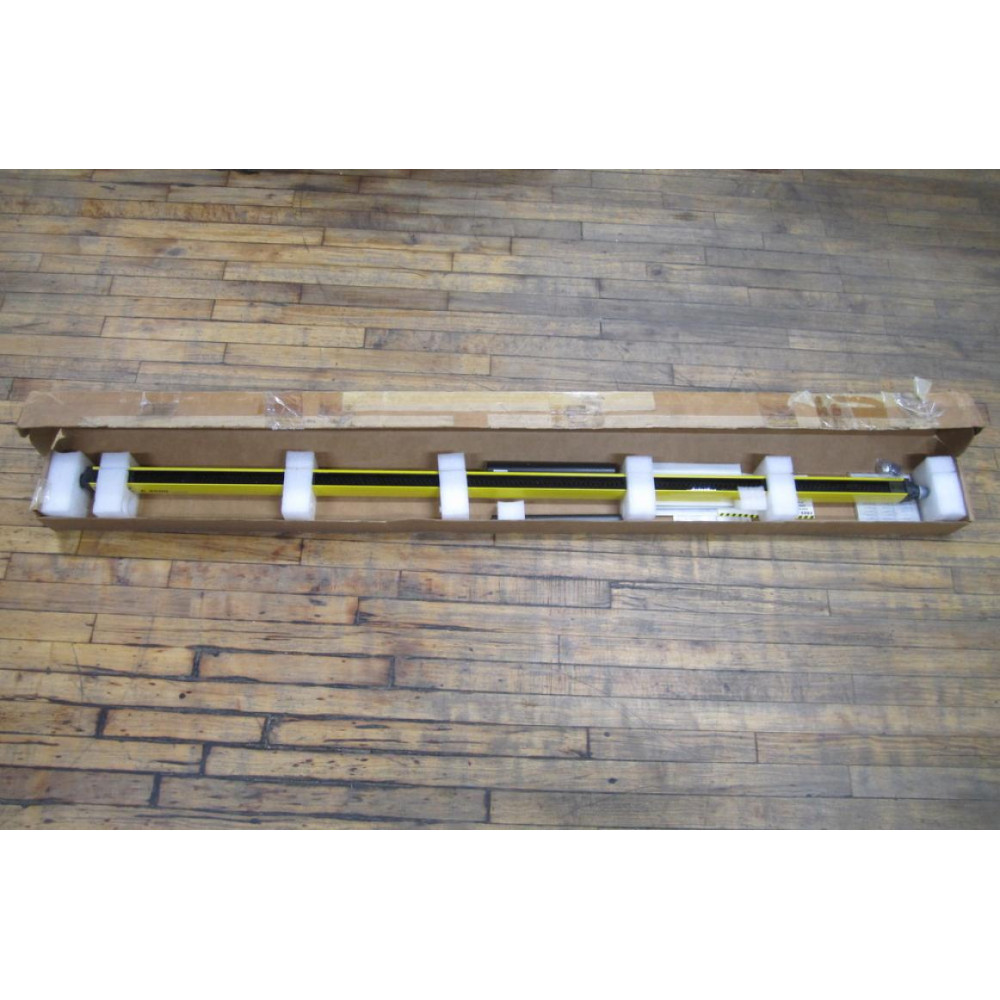

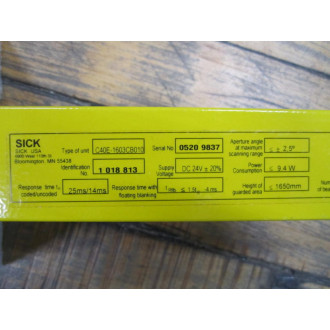

Sick C40E-1603CB010 Receiver C40E1603CB010

Type of Unit: C40E-1603CB010
Identification No: 1 018 813
Supply Voltage: DC 24V +/- 20%
Response Time Coded/Uncoded: 24ms/14ms
Response Time With Floating Blanking1.5tR -4ms
Aperture Angle At Maximum Scanning Range: < +/- 2,5°
Power Consumption: < 9.4W
Height Of Guarded Area: < 1650mm
Number of Beams: 83

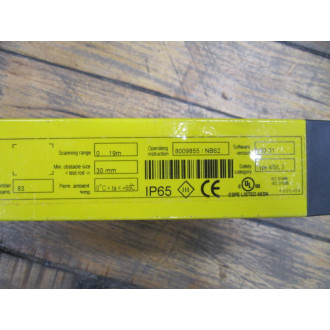

Scanning Range: 0...19m
Min Obstacle Size: 30mm
Perm Ambient Temp: 0°C <ta<+55C
Operating Instruction 8009855 / NB62

Software Version: V03.31
Safety Category: Type 4/SIL 3
