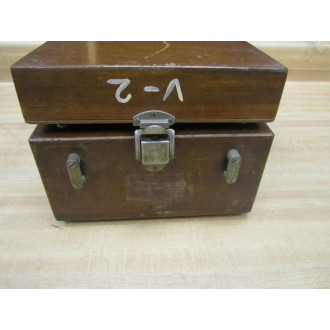

GE General Electric 3229284 Vintage Industrial ac Volt Meter Antique - Used

GE General Electric 3229284 Vintage Industrial a/c Volt Meter Antique - Used

PN: 3229284

General Electric

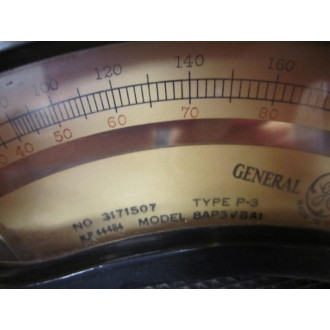

3171507
Model: 8AP3VBA1
N.P. 44484

Vintage/Antique
Untested Sold As Is
Missing Leather Strap

This Item Has Been Prepackaged And Stored At An Offsite Location So No Questions About Item Will Be Answered. (Regarding Condition/Features)

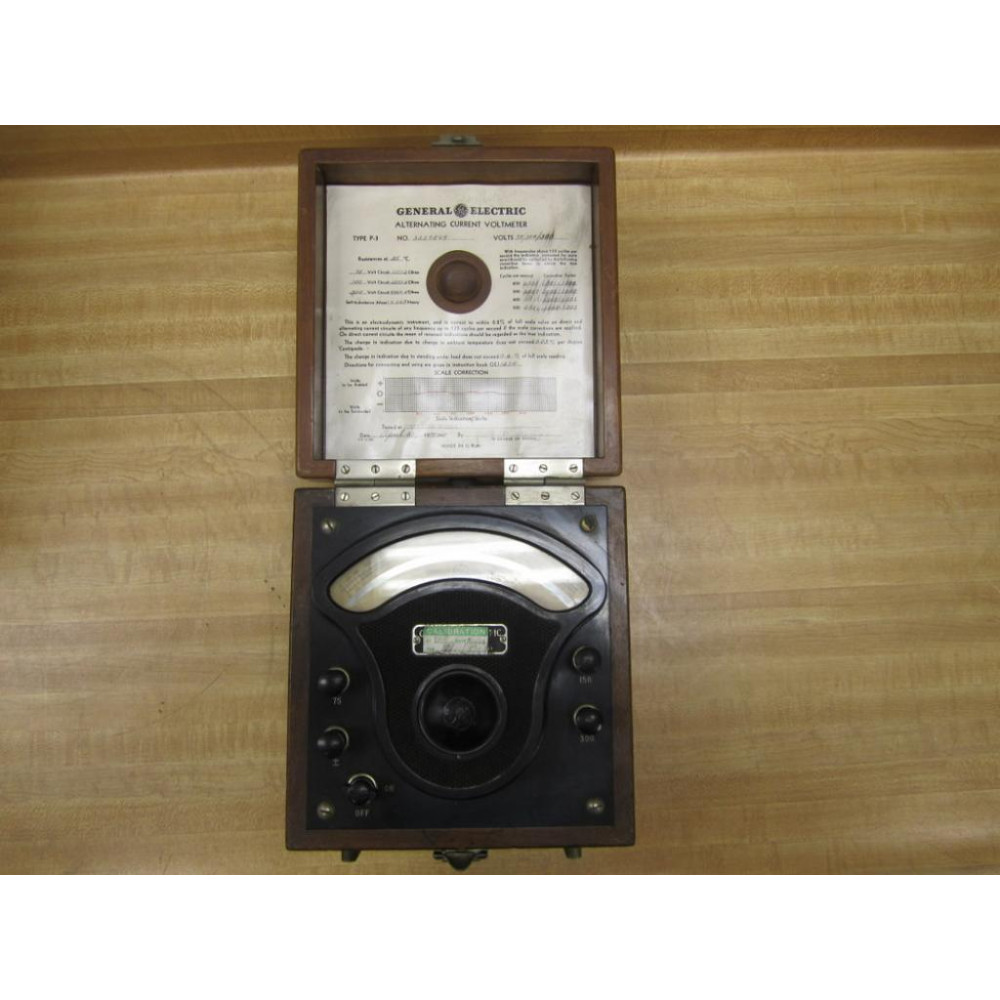

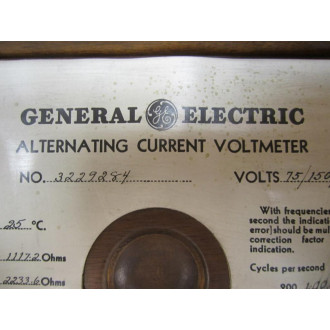

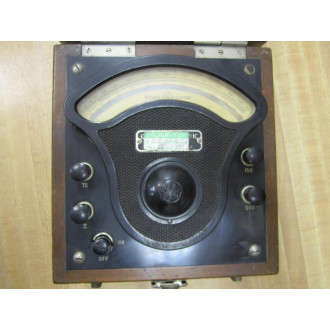

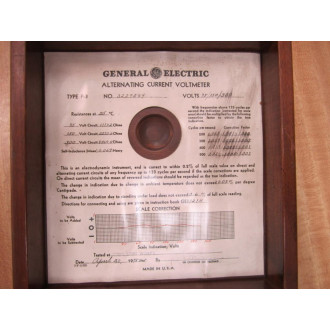

Alternating Current Voltmeter
Type P-3
Volts: 75/150/300

Resistances At 25 °C.

75 Volt Circuit 1117.2 Ohms
150 Volt Circuit 2233.6 Ohms
300 Volt Circuit 4469.8 Ohms
Self-Inductance(Mean) 0.069 Henry

This Is An Electrodynamic Instrument, And Is Correct To Within 0.2% Of Full Scale Value On Direct And Alternating Current Circuits Of Any Frequency Up To 133 Cycles Per Second If The Scale Corrections Are Applied.
On Direct Current Circuits The Mean Of Reversed Indications Should Be Regarded As The True Indication.

The Change In Indication Due To Change In Ambient Temperature Does Not Exceed 0.03% Per Degree Centigrade.

The Change Indication Due To Standing Under Load Does Not Exceed 0.6% Of Full Scale Reading.
Directions For Connecting And Using Are Given In Instruction Book GEJ121H (Not Included).

Tested At West Lynn Works April 20, 1948

Last Known Calibration Date 4/10/1984
