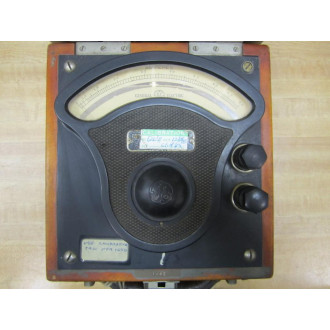

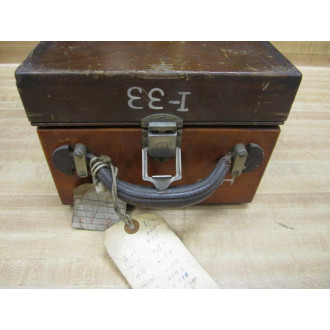

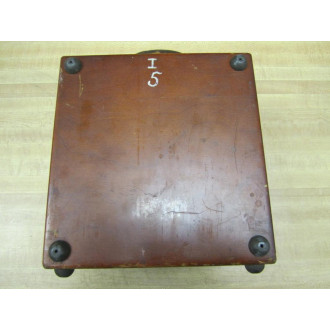

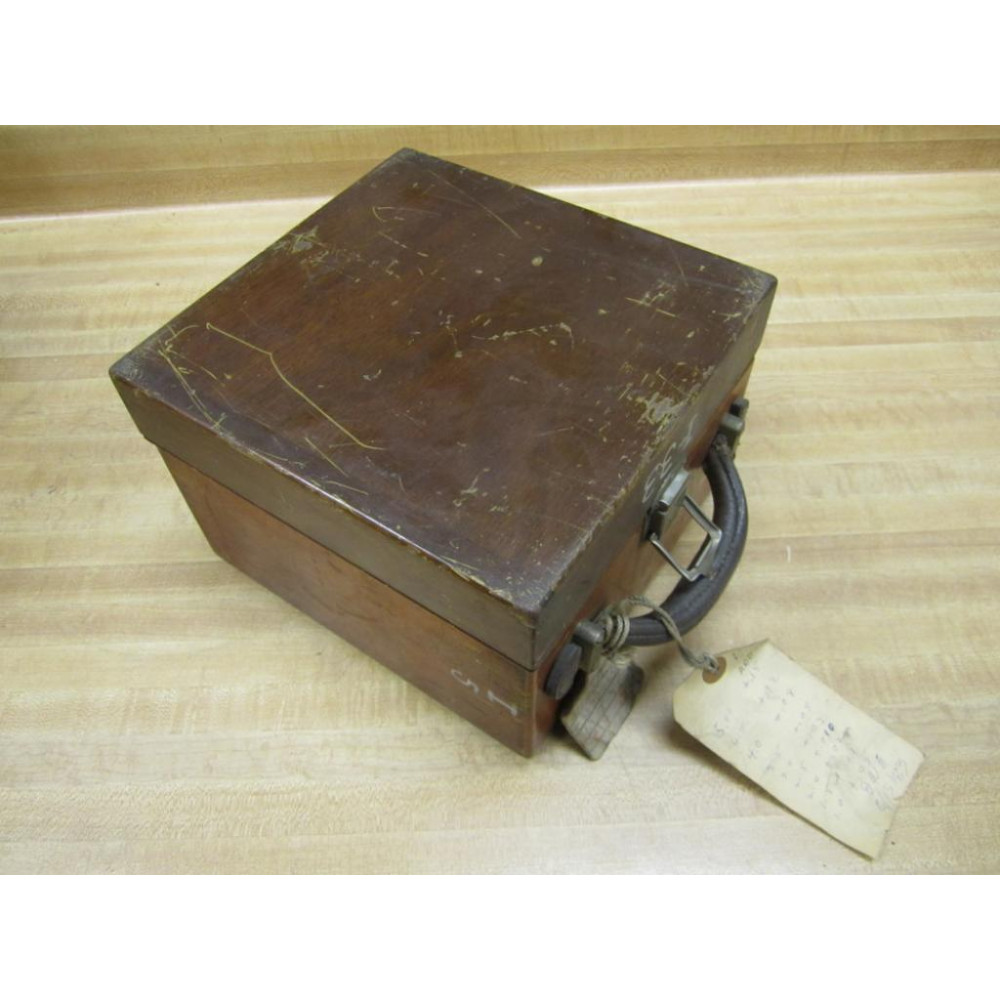

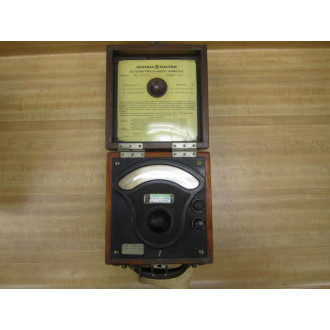

GE General Electric 3196713 Vintage Industrial ac Amp Meter Antique - Used

GE General Electric 3196713 Vintage Industrial a/c Amp Meter Antique - Used

PN: 3196713

General Electric
3237225

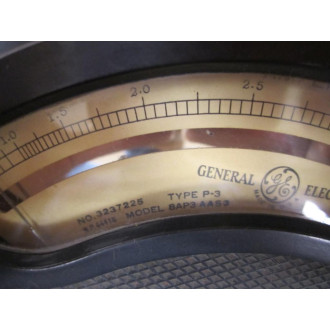

Model: 8AP3AAS3
N.P. 44418

Vintage/Antique
Untested Sold As Is
Some Paint On Sides

This Item Has Been Prepackaged And Stored At An Offsite Location So No Questions About Item Will Be Answered. (Regarding Condition/Features)

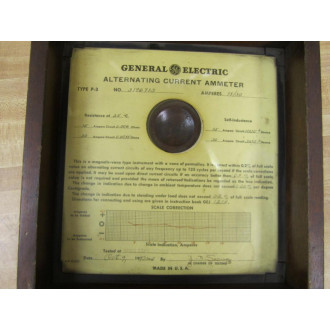

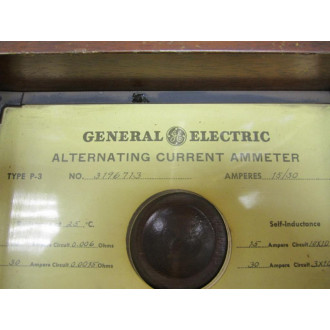

Alternating Current Ammeter

Resistances At 25 °C.

15 Ampere Circuit 0.006 Ohms
30 Ampere Circuit 0.0015 Ohms

Self-Inductance
15 Ampere Circuit 10x10-6 Henrys
30 Ampere circuit 3x10-6 Henrys


This Is A Magnetic-Vane Type Instrument With A Vane Of Permalloy. It Is Correct To Within 0.2% Of Full Scale Value On Alternating Current Circuits Of Any Frequency Up To 133 Cycles Per Second If The Scale Corrections Are Applied.
It May Bey Used Upon Direct Current Circuits If An Accuracy Better Than 0.3% Of Full Scale Value Is Not Required And Provided The Mean Of reversed Indications Be Regarded As True Indication.

The Change In Indication Due To Change In Ambient Temperature Does Not Exceed 0.2% Of Full Scale Reading.

Directions For Connecting And Using Are Given In Instruction Book GEJ121H (Not Included).

Tested At West Lynn Works October 9 1947

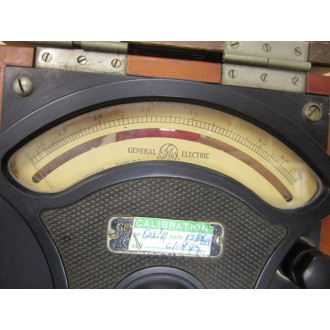

Last Known Calibration Date 12/10/84
