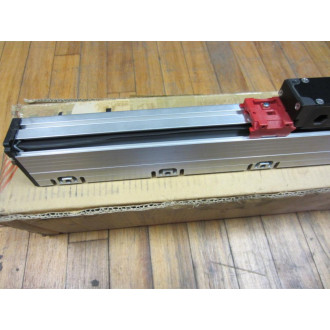

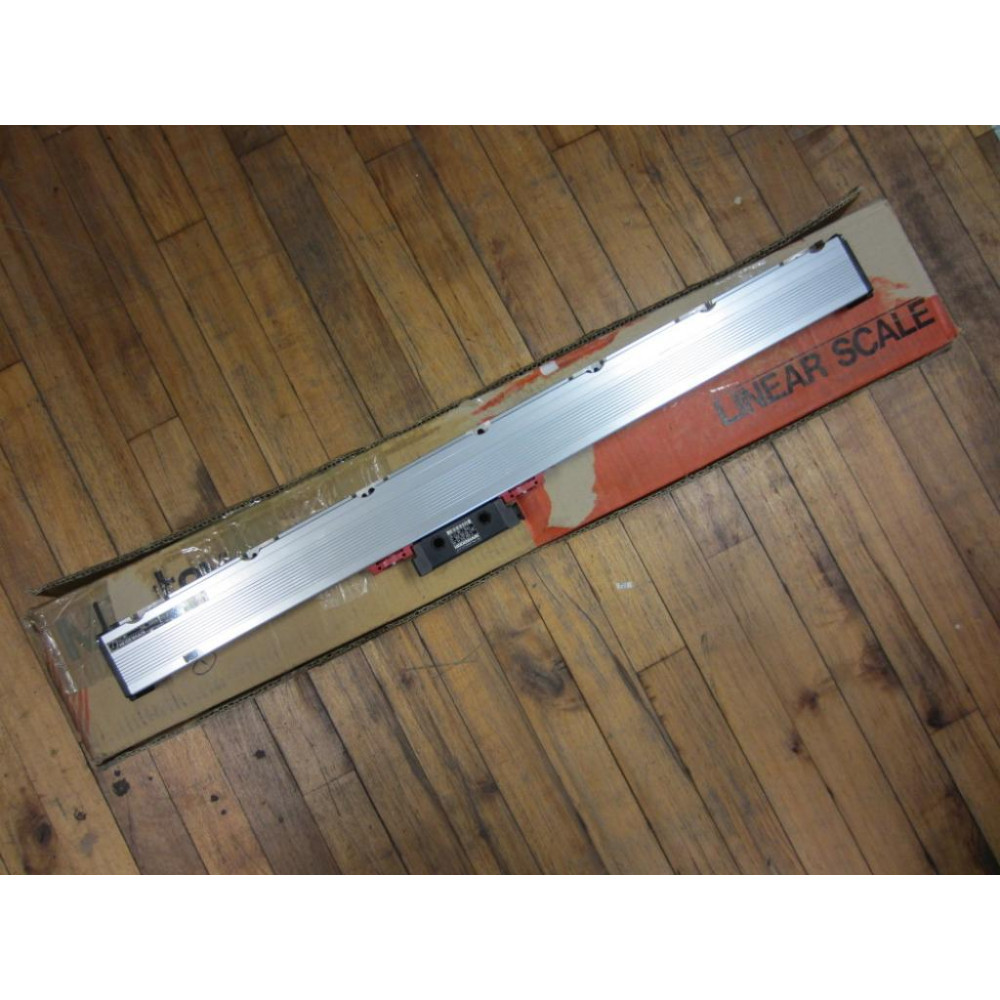

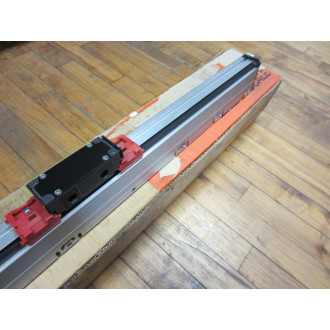

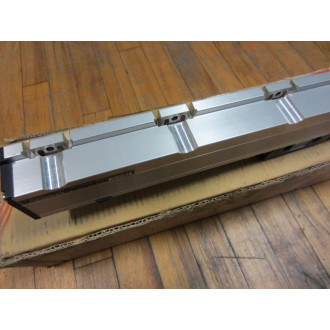

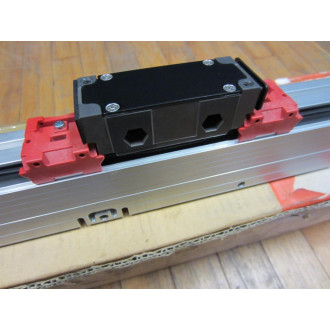

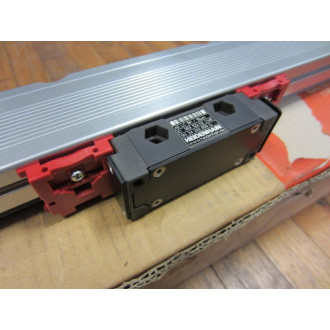

Heidenhain LC 181 Linear Encoder Glass Scale LC181 ID 359 122-02
Write your review
$1,875.77
LC 181
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
Heidenhain LC 181 Linear Encoder Glass Scale LC181 ID 359 122-02
PN: LC 181
LC-181
Measuring Standard: DIADUR Glass Scale With 7 Tracks Of Differing Grating Periods
Data Interface: EnDat (Synchronous Serial)
Incremental Output Signals: 1 VPP, Signal Period 16 µm
Accuracy Grade: ± 5 µm , ± 3 um
Recommended Measurement Steps: 1 µm To 0.1 µm
Measuring Lengths: 240mm To 3040mm

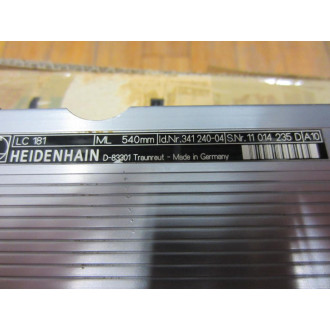

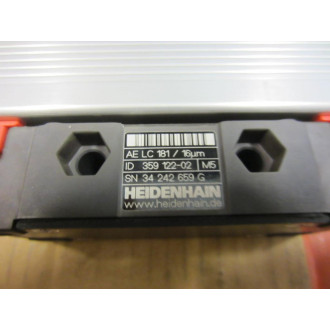

ID 359 122-02 M5SN 34 242 659 GId.Nr. 341 240-04S.Nr. 11 014 235 D
PN: LC 181
LC-181
Measuring Standard: DIADUR Glass Scale With 7 Tracks Of Differing Grating Periods
Data Interface: EnDat (Synchronous Serial)
Incremental Output Signals: 1 VPP, Signal Period 16 µm
Accuracy Grade: ± 5 µm , ± 3 um
Recommended Measurement Steps: 1 µm To 0.1 µm
Measuring Lengths: 240mm To 3040mm
ID 359 122-02 M5SN 34 242 659 GId.Nr. 341 240-04S.Nr. 11 014 235 D
Absolute Linear Encoder
Glass Scale
16μm
ML 540mm
359 122-02
341240-04
