- New
Sola Electric 63-23-125-4 Transformer 63231254
Write your review
$695.77
63-23-125-4
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
Sola Electric 63-23-125-4 Transformer 63231254
PN: 63-23-125-4
63231254
Constant Voltage Transformer Harmonic Neutralized
4 Hole Mount

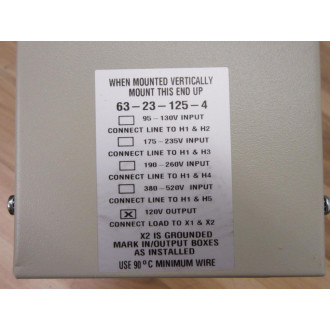

When Mounted Vertically
For 95-130V Input Connect Line To H1 & H2
For 175-235V Input Connect Line To H1 & H3
For 190-260V Input Connect Line To H1 & H4
For 380-520V Input Connect Line To H1 & H5
For 120V Output Connect Load To X1 & X2 Note X2 Is Grounded
PN: 63-23-125-4
63231254

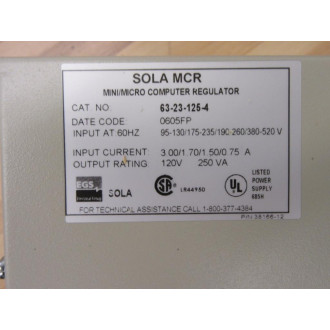

| Input Amps: | 3.00X1.70X1.50X.75 |
| Input Hertz: | 60 |
| Input Volts: | 95-130X175-235X190-260X380-520 |
| Output V: | 120 |
| Output VA: | 250 |
Constant Voltage Transformer Harmonic Neutralized
4 Hole Mount
When Mounted Vertically
For 95-130V Input Connect Line To H1 & H2
For 175-235V Input Connect Line To H1 & H3
For 190-260V Input Connect Line To H1 & H4
For 380-520V Input Connect Line To H1 & H5
For 120V Output Connect Load To X1 & X2 Note X2 Is Grounded
