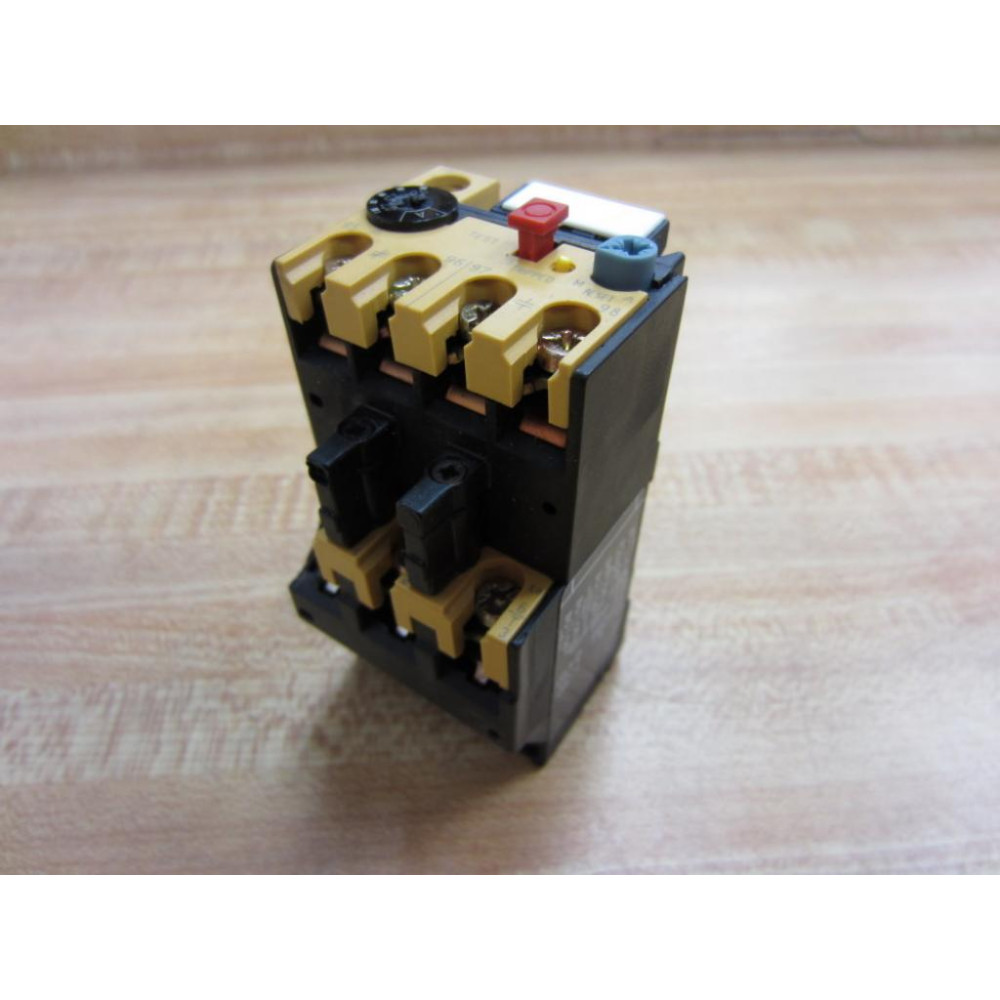

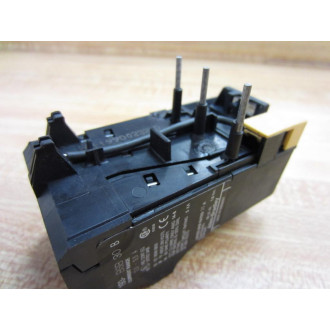

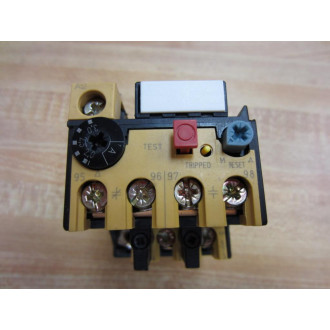

Allen Bradley 193-BSB-30 Overload Relay 193BSB30 Cracked Terminal Slot - Used
Write your review
$75.44
193-BSB-30
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
Allen Bradley 193-BSB-30 Overload Relay 193BSB30 Cracked Terminal Slot - Used
PN: 193-BSB-30
193BSB30

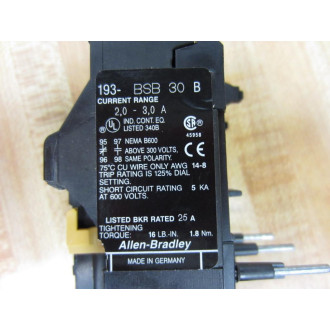

Bulletin 193
3 Pin Male
8 Terminal Screw
95 97 Nema B600
Above 300 Volts
96 98 Same Polarity
75°C CU Wire Only AWG 14-8 Trip Rating Is 125% Dial Setting.
Short Circuit Rating 5KA At 600 Volts.
Listed BKR Rated 25A
45958
Tightening
Torque: 16 LB.-IN. 1.8 Nm.
Max. 10A
Type C
Coord.
IEC 947
Ui=660V
BS 4941
Ie=0,5A
VDE 0660
AC-15, 500V
UPC:10662072293680

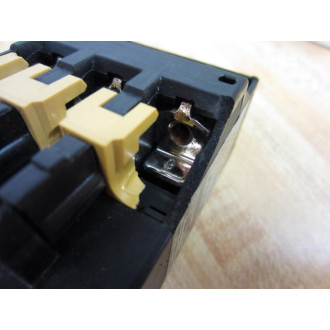

Overload Relay Cracked Terminal Slot
PN: 193-BSB-30
193BSB30
193-BSB-30
193BSB30
Bimetallic Overload RelayBulletin 193
3 Pin Male
8 Terminal Screw
95 97 Nema B600
Above 300 Volts
96 98 Same Polarity
75°C CU Wire Only AWG 14-8 Trip Rating Is 125% Dial Setting.
Short Circuit Rating 5KA At 600 Volts.
Listed BKR Rated 25A
45958
Tightening
Torque: 16 LB.-IN. 1.8 Nm.
Max. 10A
Type C
Coord.
IEC 947
Ui=660V
BS 4941
Ie=0,5A
VDE 0660
AC-15, 500V
UPC:10662072293680
Overload Relay Cracked Terminal Slot
Series: B
Current Range: 2,0A-3,0A
