Allen Bradley 193-EA1EB Overload Relay 193EA1EB Series B: 1.6-5.0A - Used
Write your review
$195.44
193-EA1EB
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!

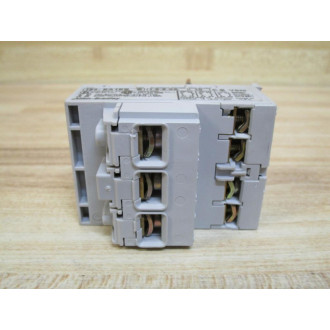

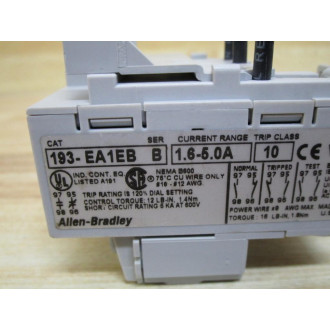

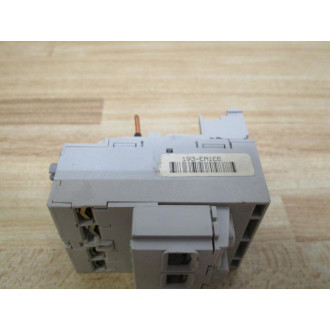

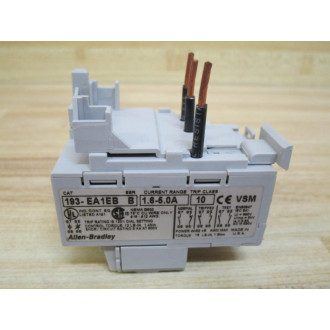

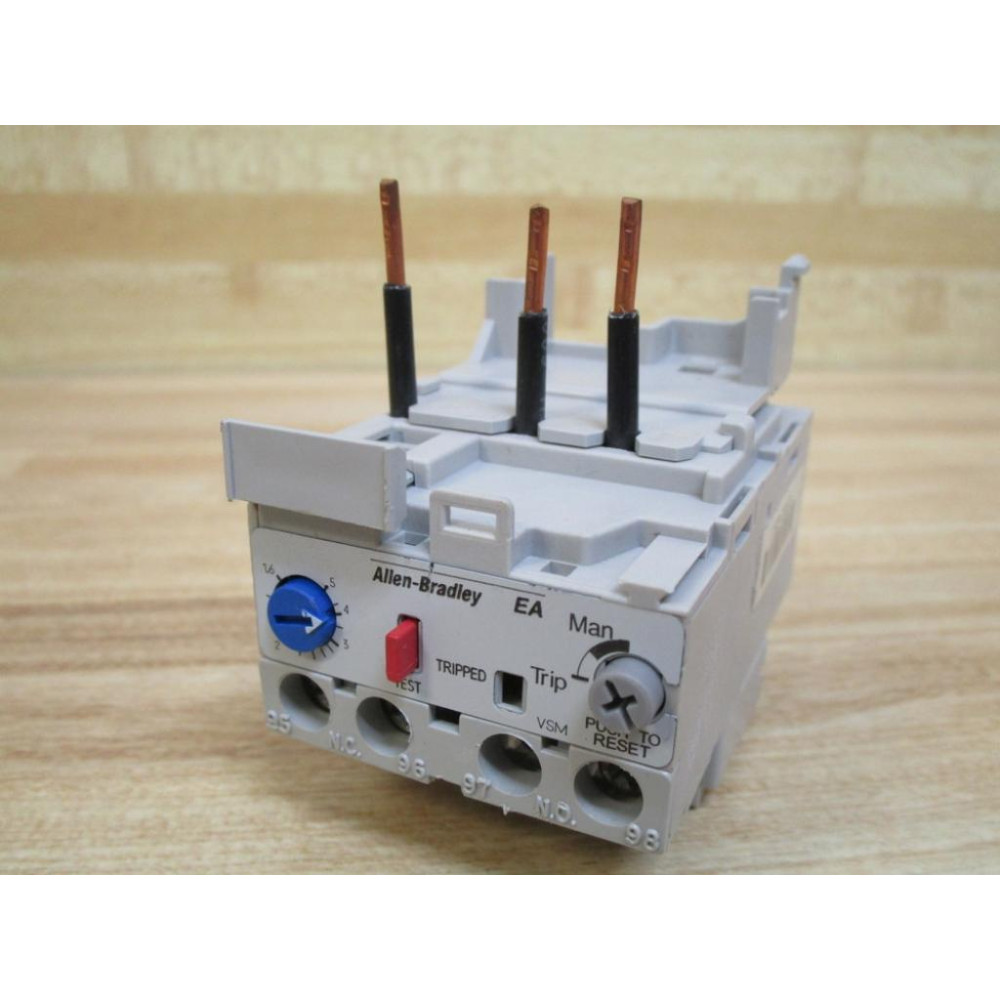

Allen Bradley 193-EA1EB Overload Relay 193EA1EB Series B: 1.6-5.0A - Used
PN: 193-EA1EB
193EA1EB
Current Range 1.6-5
Or For Use With 100-C09 C12 C16 C23 M05 M09
UPC: 10662072619077
Trip Class 10
Ind Cont Eq Listed A191
Nema B600
75°C CU Wire Only
#18-#12 AWG
Trip Rating Is 120% Dial Setting
Control Torque: 12Lb-In 1.4Nm
Short Circuit Rating 5 KA At 600V
EN60947
IEC 947
UI: 690V
Uimp = 6Kv
Ie: 0.5A
AC15, 690V
Power Wire #14-#8 AWG
Torque: 16 LB-In 1.8 Nm
PN: 193-EA1EB
193EA1EB
Current Range 1.6-5
Or For Use With 100-C09 C12 C16 C23 M05 M09
UPC: 10662072619077
Trip Class 10
Ind Cont Eq Listed A191
Nema B600
75°C CU Wire Only
#18-#12 AWG
Trip Rating Is 120% Dial Setting
Control Torque: 12Lb-In 1.4Nm
Short Circuit Rating 5 KA At 600V
EN60947
IEC 947
UI: 690V
Uimp = 6Kv
Ie: 0.5A
AC15, 690V
Power Wire #14-#8 AWG
Torque: 16 LB-In 1.8 Nm
Series B
1.6-5.0 Amps
