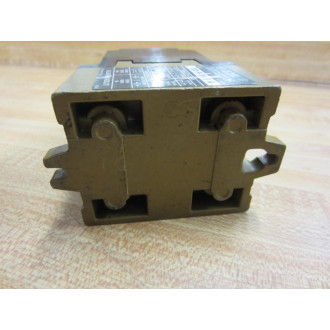

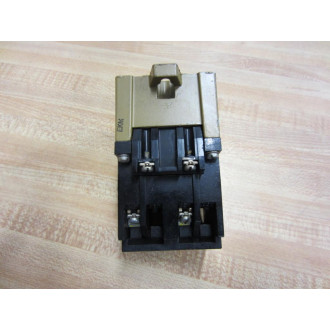

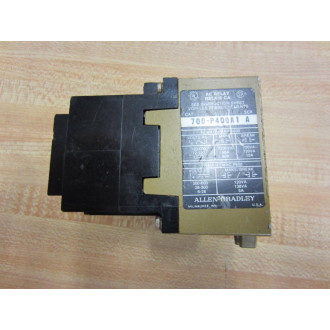

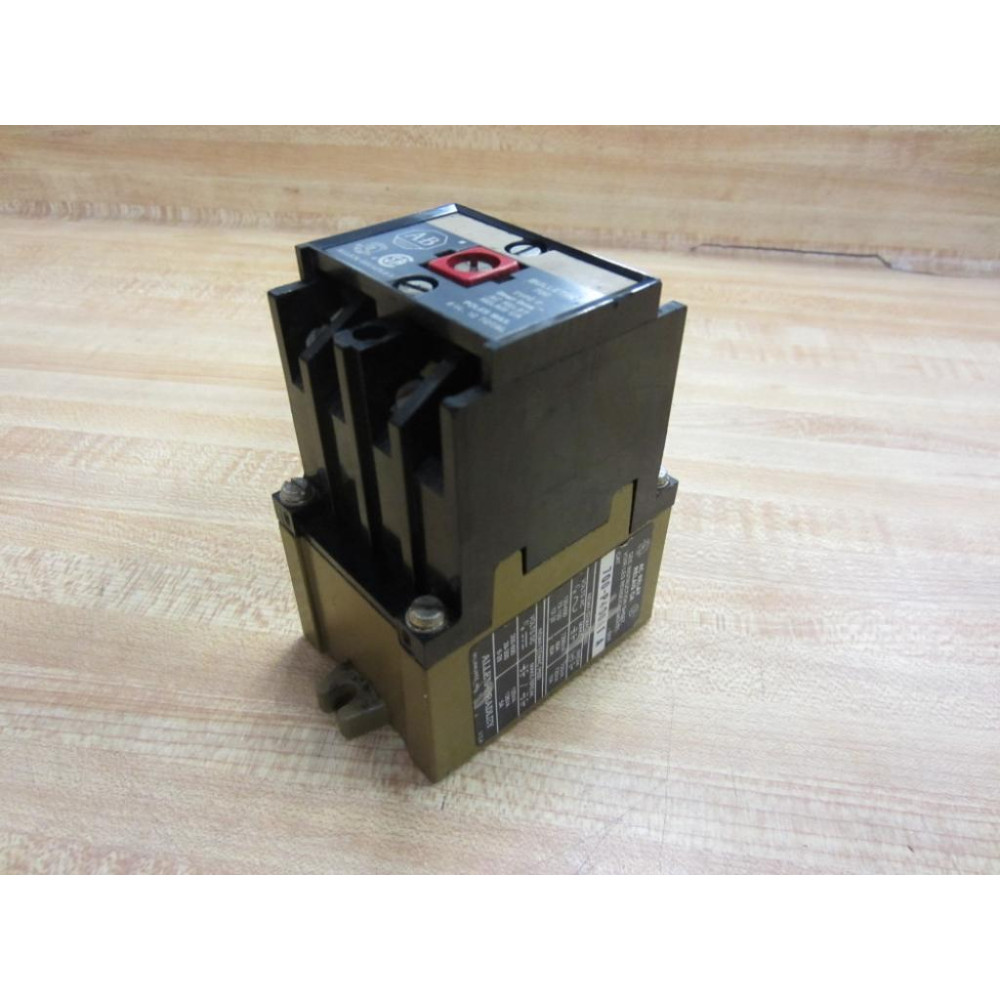

Allen Bradley 700-P400A1 700P400A1 Relay Series A No Screw Term - Used

Allen Bradley 700-P400A1 700P400A1 Relay Series A No Screw Term - Used

PN: 700-P400A1
700P400A1

Allen Bradley
PN: 700-P400A1
700P400A1
Relay

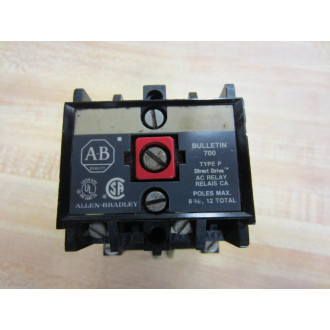

Bulletin: 700
Series A
Type P
AC Relay

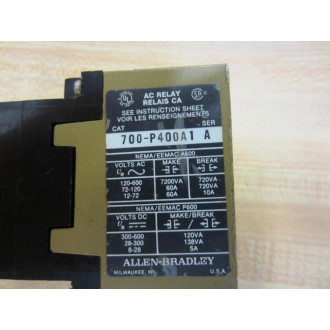

10 Amp 600V -- Nema/EEMAC A600
Volts AC -- Make -- Break
120-600 - 7200VA - 720VA
72-120 - 60A - 720VA
12-72 - 60A - 10A

Nema/EEMAC P600
Volts DC -- Make/Break
300-600 - 120VA
28-300 - 138VA
6-28 - 5A

20A 600V ~ 2 X A600

Volts AC -- Make -- Break
120-600 - 14.4KVA - 1.44KVA
72-120 - 120A - 1.44KVA
12-72 - 120A - 20A

DC Nema/EEMAC N150 P600

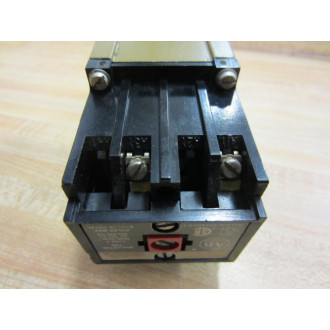

Missing Screw Terminals
