Cutler Hammer C25BNB230A Definite Purpose Contactor Series E1
Write your review
$40.77
C25BNB230A
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!

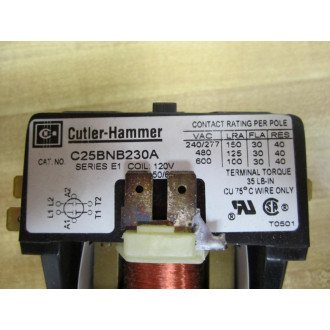

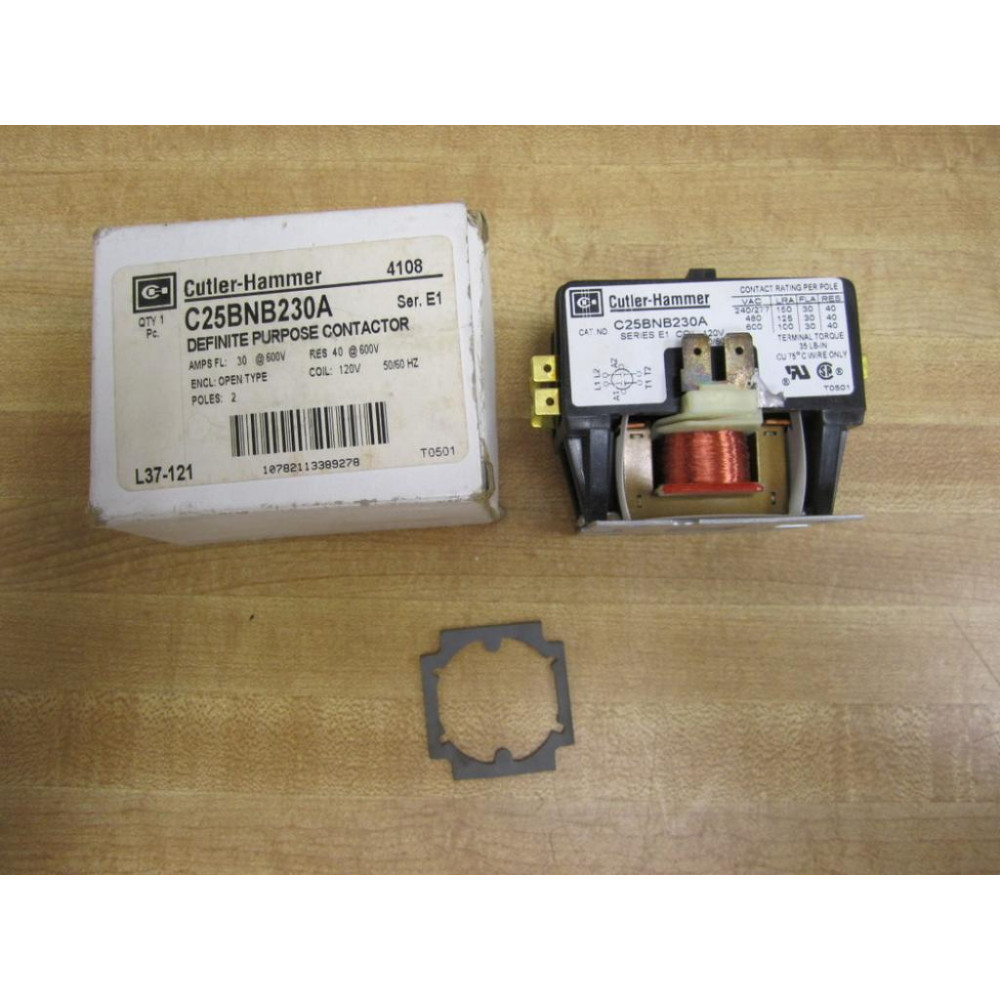

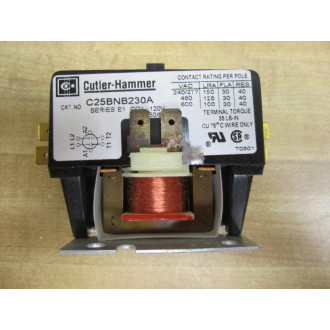

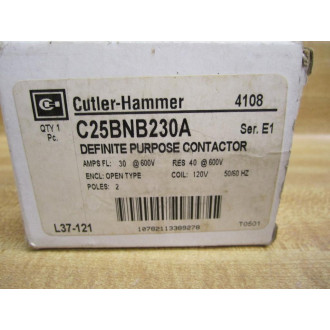

Cutler Hammer C25BNB230A Definite Purpose Contactor Series E1
PN: C25BNB230A
Coil: 120V
50/60Hz
Contact Rating Per Pole
Vac | LRA | FLA | RES
240/244 | 150 | 30 | 40
480 | 125 | 30 | 40
600 | 100 | 30 | 40
Terminal Torque
35 LB-IN
CU 75°C Wire Only
Amps FL: 30 @ 600V
Res 40 @ 600V
ENCL: Open Type
Poles: 2
Series E1UPC Number: 10782113389278
PN: C25BNB230A
Coil: 120V
50/60Hz
Contact Rating Per Pole
Vac | LRA | FLA | RES
240/244 | 150 | 30 | 40
480 | 125 | 30 | 40
600 | 100 | 30 | 40
Terminal Torque
35 LB-IN
CU 75°C Wire Only
Amps FL: 30 @ 600V
Res 40 @ 600V
ENCL: Open Type
Poles: 2
Series E1UPC Number: 10782113389278
