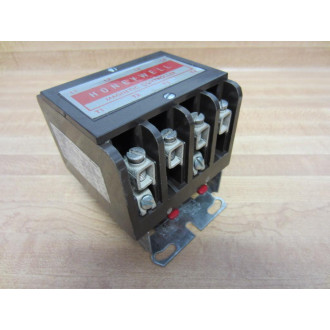

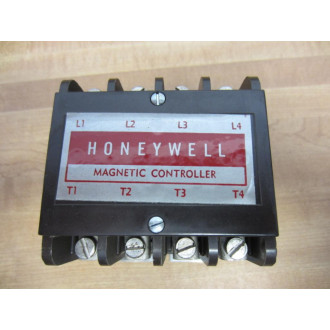

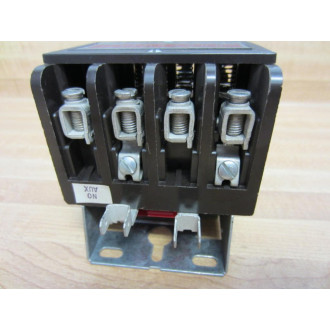

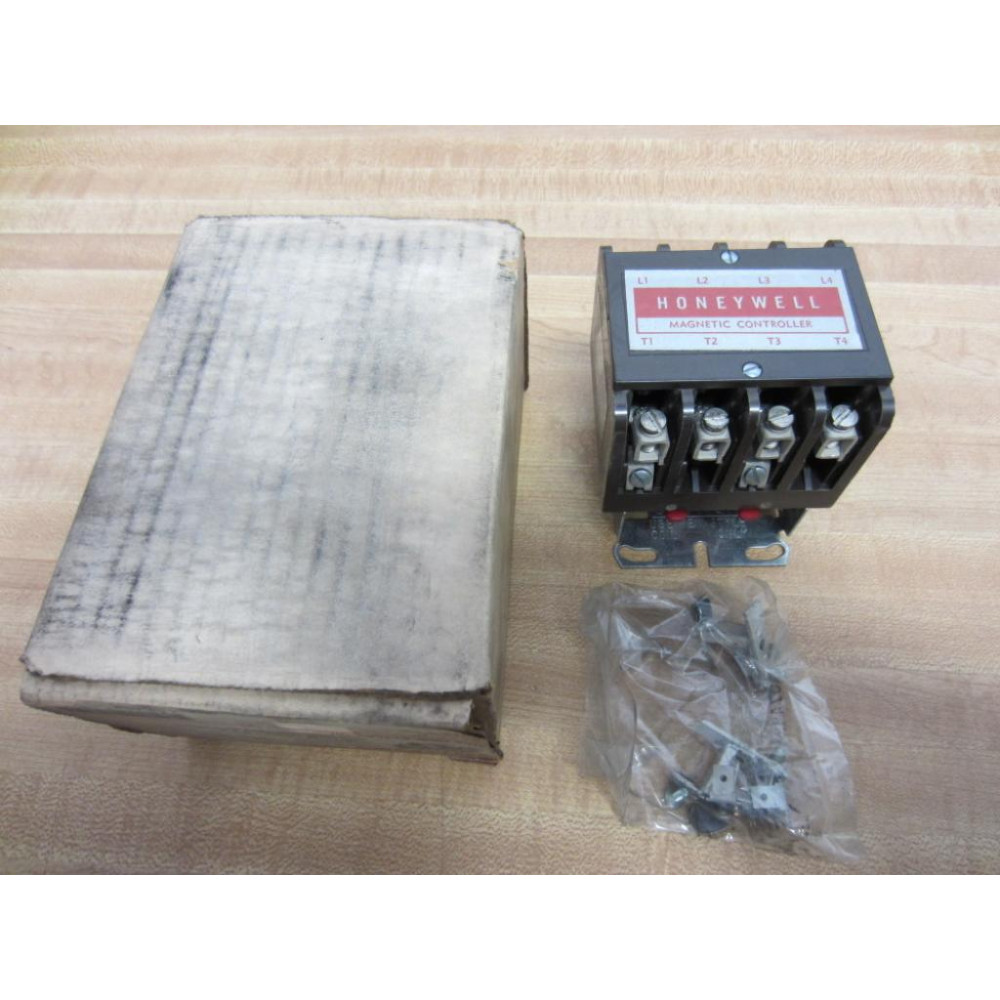

Honeywell R4214P1008 Contactor

Honeywell R4214P1008 Contactor

PN: R4214P1008

Amp:	40
Contact Rating:	40 A Inductive 50 A Resistive
Control Circuit:	120 V, 50/60 Hz
Pole:	4
Switching:	4pst

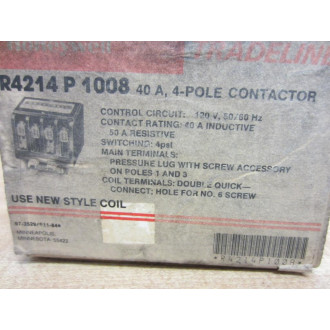

Tradeline Contactor
R4214P 1008

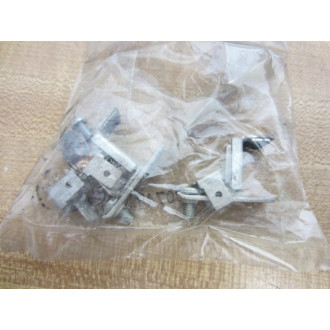

8 Terminal Screws

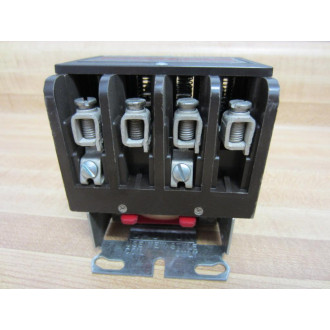

Main Terminals: Pressure Lug With Screw Accessory On Poles 1 And 3
Coil Terminals: Double Quick-Connect; Hole For No. 6 Screw
Use New Style Coil
97-3529/11-84

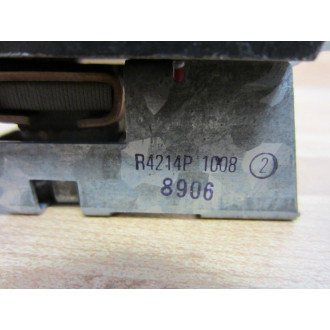

*R4214P1008*
8906

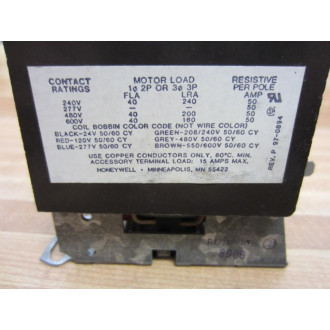

Contact Motor Load Resistive
Ratings 1Ã 2P Or 3&216; 3P Per Pole
FLA LRA AMP
240V 40 240 50
277V - - 50
480V 40 200 50
600V 40 160 50

Coil Bobbin Color Code (Not Wire Color)
Black-24V 50/60 CY
Red-120V 50/60 CY
Blue-277V 50/60 CY
Green-208/240V 50/60CY
Grey-480V 50/60 CY
Brown-550/600V 50/60 CY

Use Copper Conductors Only. 60°C. Min.
Accessory Terminal Load: 15 Amps Max.


REV. P 97-0894
