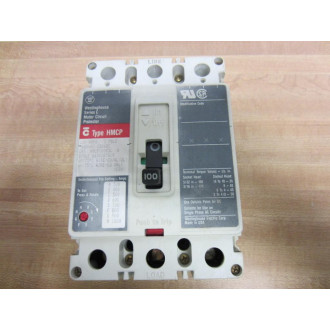

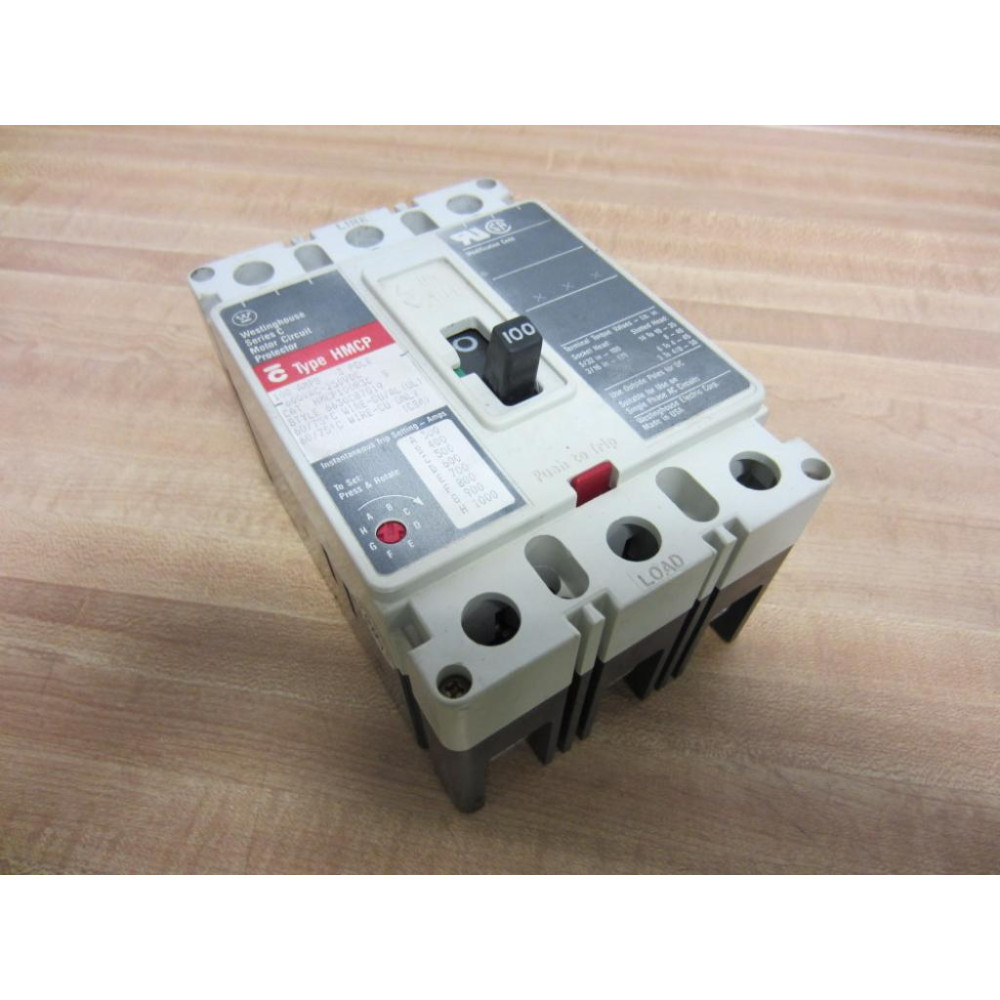

Westinghouse HMCP100R3C B Motor Circuit Protector Series C - Used

Westinghouse HMCP100R3C B Motor Circuit Protector Series C - Used

PN: HMCP100R3C B
HMCP100R3C-B

Amps:	100
Pole:	3

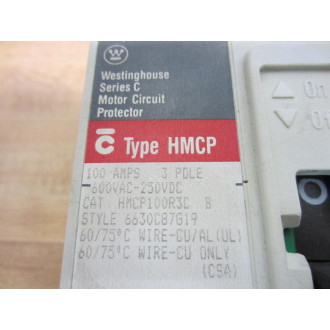

Motor Circuit Protector
Type HMCP
600VAC-250VDC
Style 6630C87G19
60/75°C Wire-CU/AL (UL)
60/75°C Wire-CU Only (CSA)

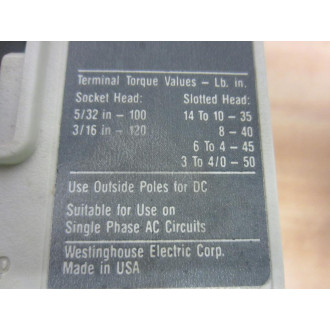

Terminal Torque Valves-Lb. in.
Socket Head:
5/32 in-100
3/16 in-120

Slotted Head:
14 To 10-35
8-40
6 To 4-45
3 To 4/0-50

Use Outside Poles For DC
Suitable For Use On Single Phase AC Circuits

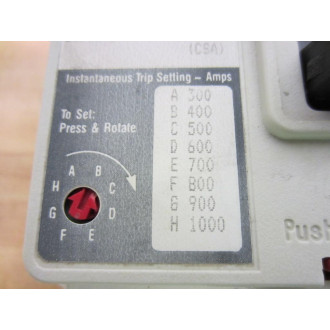

Instantaneous Trip Setting-Amps
A 300
B 400
C 500
D 600
E 700
F 800
G 900
H 1000

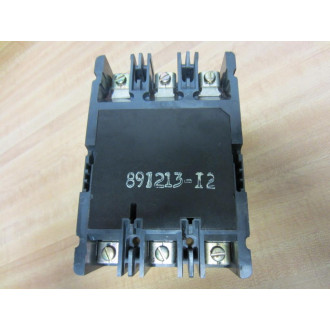

Series C 891213-I2
