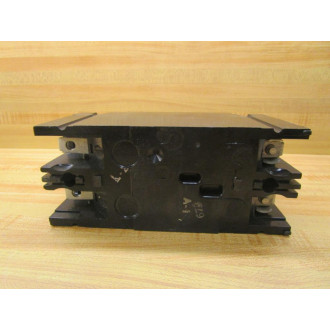

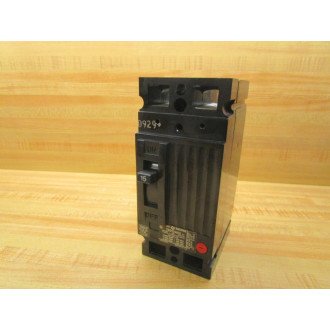

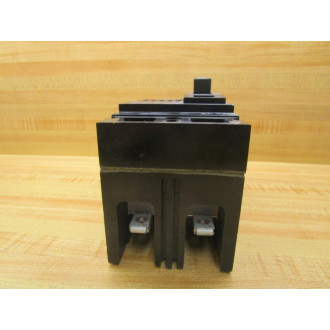

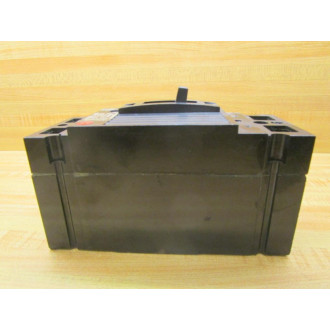

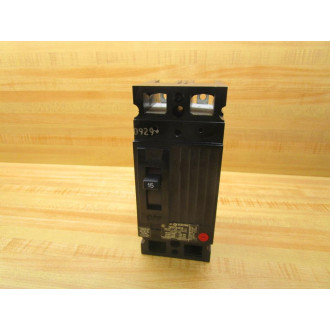

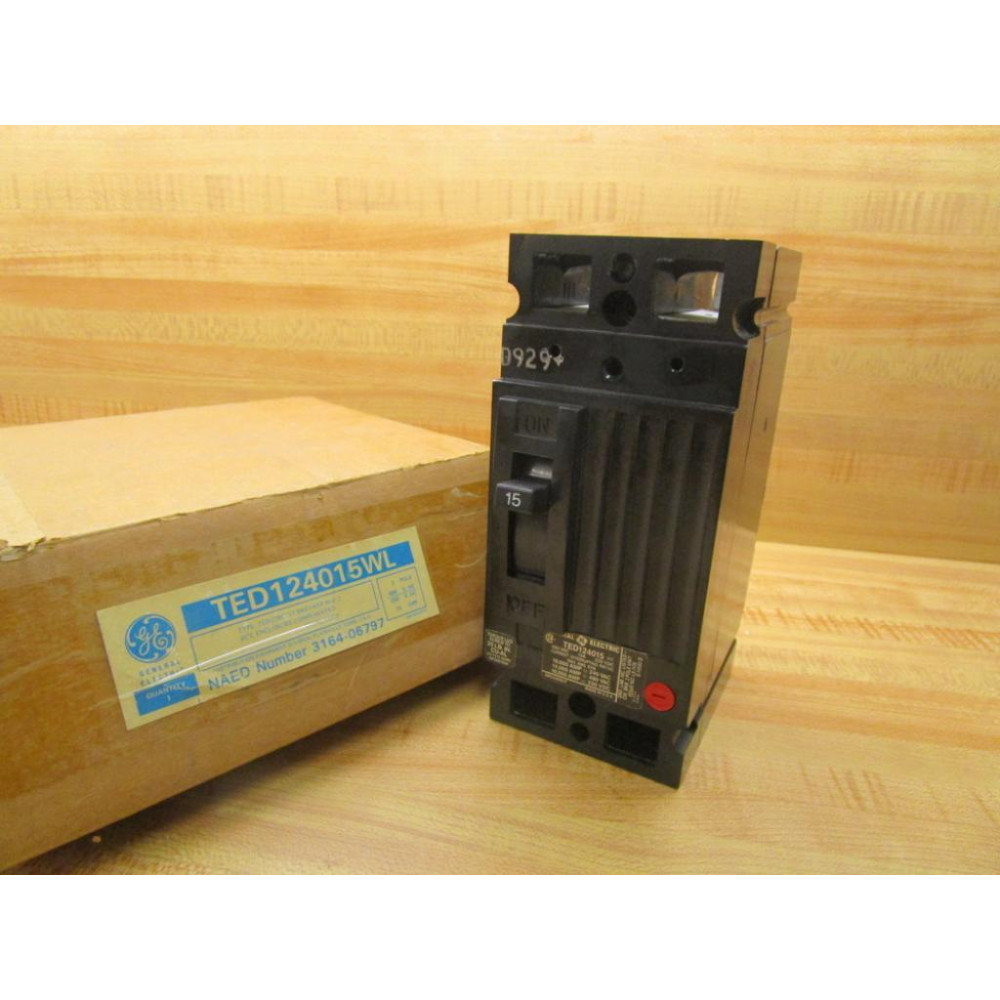

General Electric TED124015WL Circuit Breakers Model 2
Write your review
$64.77
TED124015WL
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
General Electric TED124015WL Circuit Breakers Model 2
PN: TED124015WL
TED124015WL

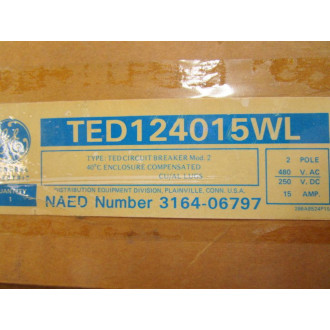

Type: TED Circuit Breaker Mod. 2
PN: TED124015WL
TED124015WL
Type: TED Circuit Breaker Mod. 2
40°C Enclosure Compensated
CU/AL Lugs
(2) Pole
480 VAC
250 VDC
15 Amp

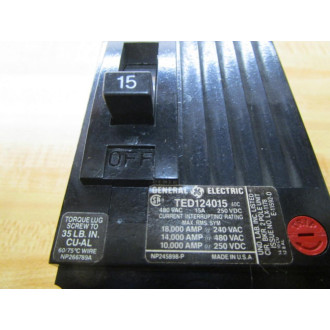

Current Interrupting Rating
Max. Rms. Sym.
18,000 Amp @ 240VAC
14,000 Amp @ 480 VAC
10,000 Amp @ 250 VDC
Torque Lug Screw To
35 Lb. In.
CU-AL
60/75°C Wire
NP266789A
