Sharp LM10V33 LCD Panel 97A17438 - Used
Write your review
$100.77
LM10V33
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!

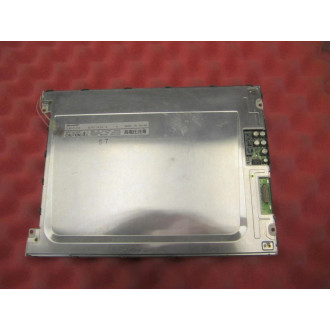

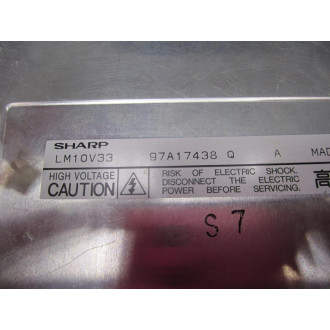

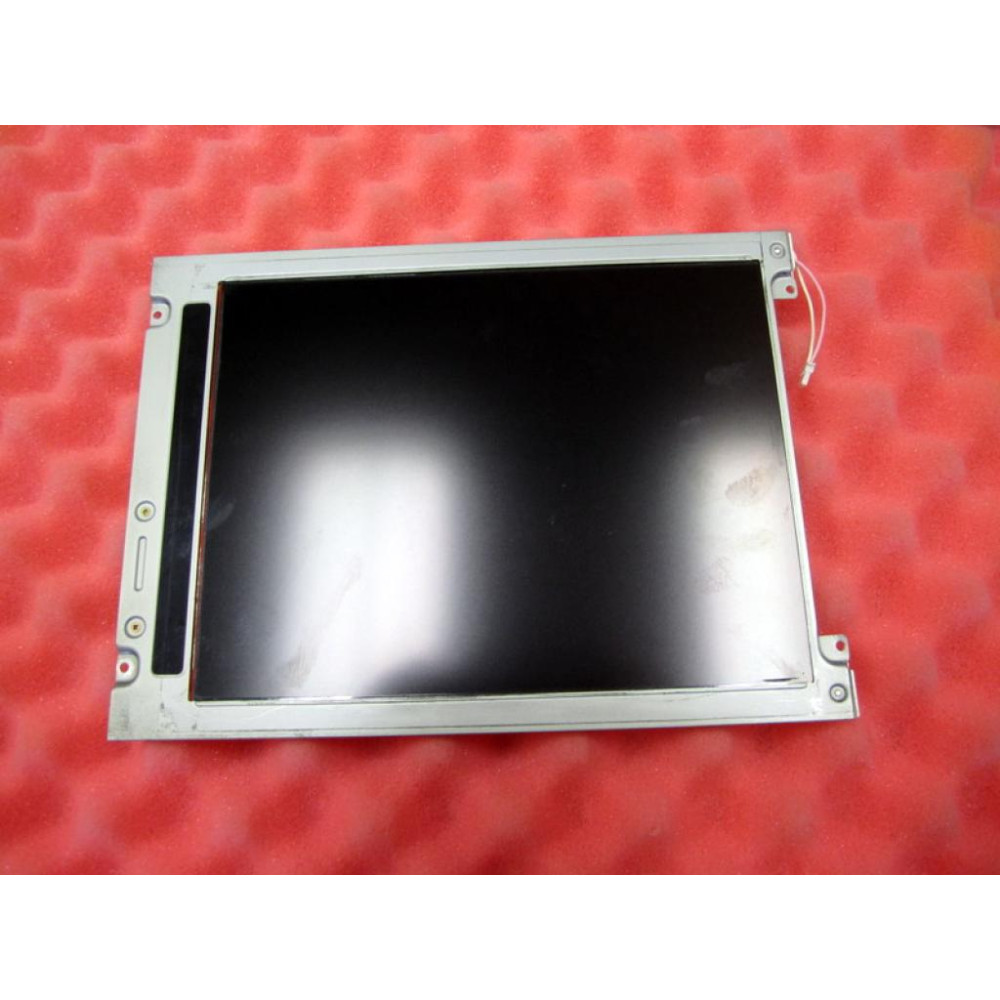

Sharp LM10V33 LCD Panel 97A17438 - Used
PN: LM10V33
LCD Panel
97A17438
Display Size: 10.4"
Backlight Type: 1CCFT
Dot Format: 640xRGBx480
Duty Ratio: 1/240
Pitch (H x V): 0.11 x 0.33 mm
Logic Voltage: 5.0 Vcon
Active area (H x V): 211.2 x 158.4
Power consumption: Panel 1050 mW, Backlight 3000 mW
Panel Mode: Transmissive
Outline Dimensions (W x H x D): 264.0 x 193.6 x 8.5 mm
Contrast Ratio 30:1
Response Time: 300 ms
Operating Temperature: 0 To +40 °C
Brightness: 70 cd/m2
Storage Temperature: -25 to +60 °C
PN: LM10V33
LCD Panel
97A17438
Display Size: 10.4"
Backlight Type: 1CCFT
Dot Format: 640xRGBx480
Duty Ratio: 1/240
Pitch (H x V): 0.11 x 0.33 mm
Logic Voltage: 5.0 Vcon
Active area (H x V): 211.2 x 158.4
Power consumption: Panel 1050 mW, Backlight 3000 mW
Panel Mode: Transmissive
Outline Dimensions (W x H x D): 264.0 x 193.6 x 8.5 mm
Contrast Ratio 30:1
Response Time: 300 ms
Operating Temperature: 0 To +40 °C
Brightness: 70 cd/m2
Storage Temperature: -25 to +60 °C
