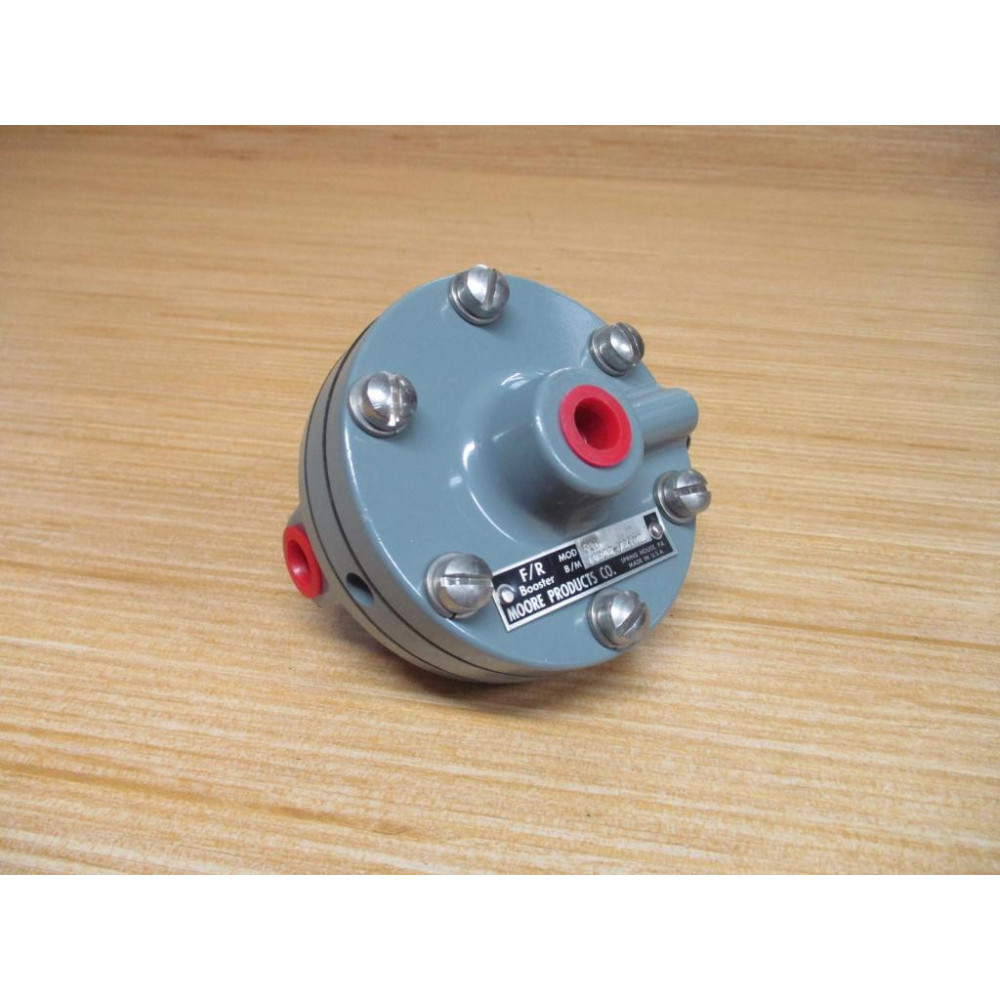

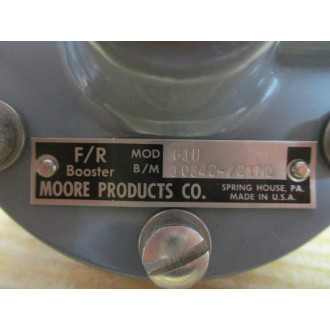

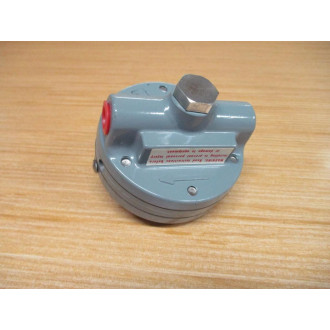

Moore Products Co 61H FR Booster BM 10342-21MD - New No Box
Write your review
$235.44
61H
Get It Fast
Orders placed before 3PM ET will be shipped out the same day!
Moore Products Co 61H F/R Booster B/M 10342-/21MD - New No Box
PN: 61H
Supply Pressure .........................................100 Psig Max.
Input Pressure ............................................100 Psig Max.
Accuracy Of 1:1 Ratio................................5% (based On 3-15 Psi Input)
Reproducibility ..........................................0.1% (based On 3-15 Psi Input)
Linearity ....................................................0.4% (based On 3-15 Psi Input)
Maximum Flow Coefficient [Cv]...............0.9 Supply; 1.1 Exhaust
Ambient Temperature Limits ....................-40° To +180°F (-40° To +82.2°C)
Materials Of Construction ..........................delrinâ¢, Aluminum, Brass, Stainless Steel, Buna-n, Epoxy Polyester
Powder Coat, Nickel Plate; Diaphragm material: Nitrile On Polyester
(effective mid-2009), Neoprene On Cotton/polyester
B/M 10342-/21MD
PN: 61H
Supply Pressure .........................................100 Psig Max.
Input Pressure ............................................100 Psig Max.
Accuracy Of 1:1 Ratio................................5% (based On 3-15 Psi Input)
Reproducibility ..........................................0.1% (based On 3-15 Psi Input)
Linearity ....................................................0.4% (based On 3-15 Psi Input)
Maximum Flow Coefficient [Cv]...............0.9 Supply; 1.1 Exhaust
Ambient Temperature Limits ....................-40° To +180°F (-40° To +82.2°C)
Materials Of Construction ..........................delrinâ¢, Aluminum, Brass, Stainless Steel, Buna-n, Epoxy Polyester
Powder Coat, Nickel Plate; Diaphragm material: Nitrile On Polyester
(effective mid-2009), Neoprene On Cotton/polyester
B/M 10342-/21MD
