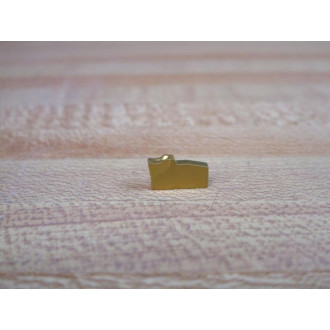

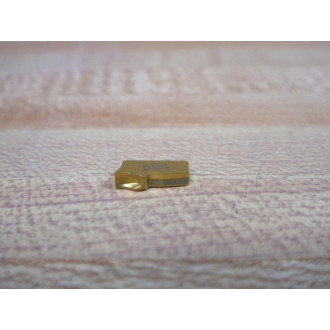

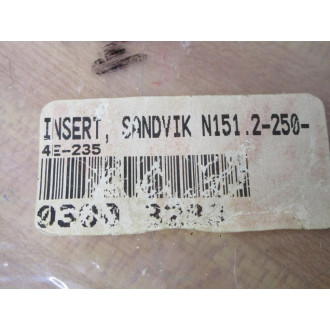

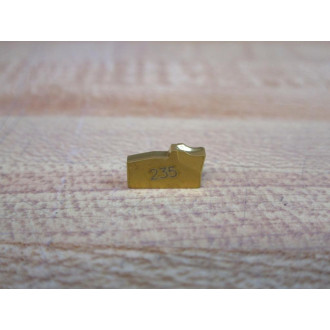

Sandvik N151.2-250-4E-235 T-Max Q-Cut Insert For Parting 235 (Pack of 6)

235

• Chip Breaker Manufacturer's Designation: 4E
• Operation Type (CTPT): Roughing
• Insert Mounting Style Code (IFS): 7
• Insert Size And Shape: Q-Cut 151.2, Size 25
• Cutting Width: 0.0984"
• Cutting Width Upper Tolerance: 0.0098"
• Corner Radius Left (REL): 0.0118"
• Corner Radius Right (RER): 0.0118"
• Corner Radius Upper/Lower Tolerance: 0.0039"
• Grade: 235
• Coating: CVD TiCN+TiN
• Thickness: 0.2672"
• Clearance Angle Major: 7°
