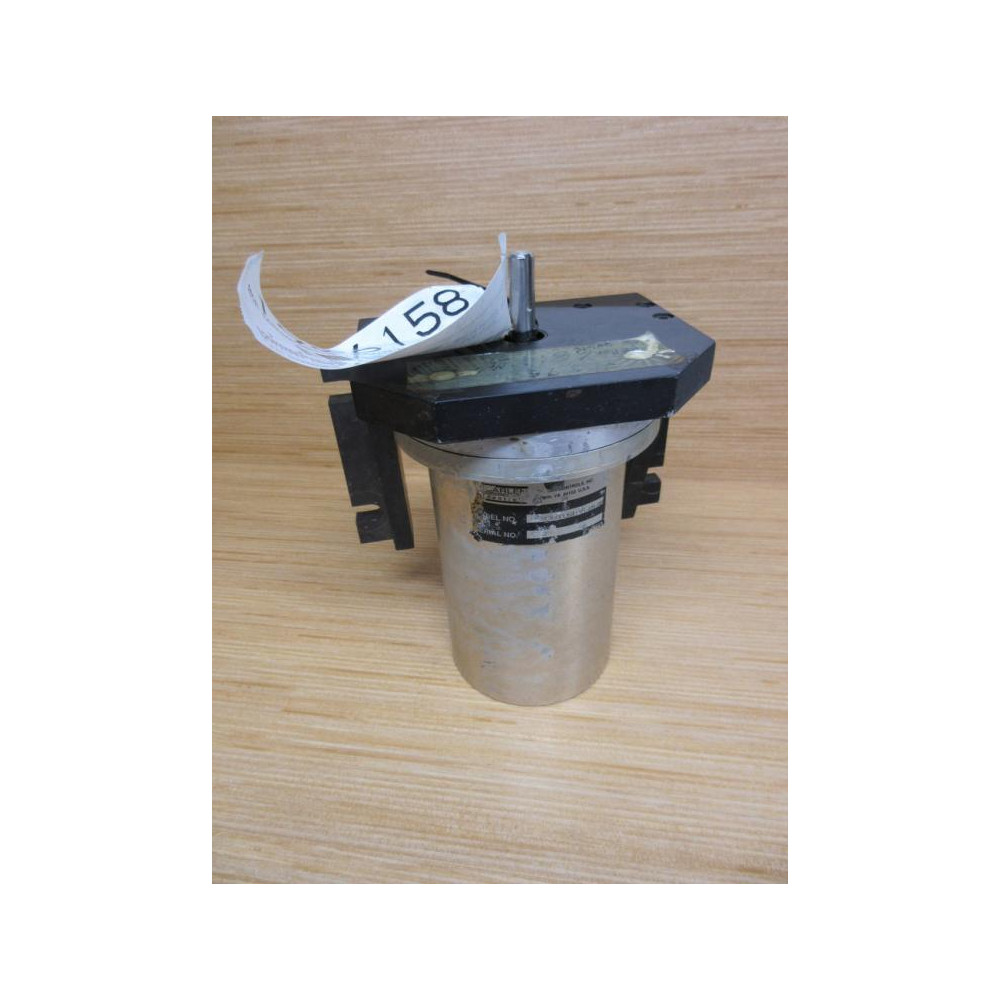

Carlen Controls CC3820R-S68:1A-FM-MS Resolver CC3820RCC681AFMMS - Used

$1,550.44
CC3820R-S68:1A-FM-MS
Quantity
Last items in stock

  Get It Fast

Orders placed before 3PM ET will be shipped out the same day!

Carlen Controls CC3820R-S68:1A-FM-MS Resolver CC3820RCC681AFMMS - Used

PN: CC3820R-S68:1A-FM-MS
CC3820RS681AFMMS

Resolver Transducer

Basic Mill Duty Design

Brushless

Frequency Range: 400-10,000Hz

Excitation Voltage(Rotor): 735 rms

Excitation Current: 40mA rms

Output Voltage (Stator): 8.0 rms

Transformation Ratio: 1.067 +/-5%

6000 RPM W/ Shaft Seal

Shaft: 1/2" DIA x 1-1/2" L, Keyway: 1/8" x 1/16"

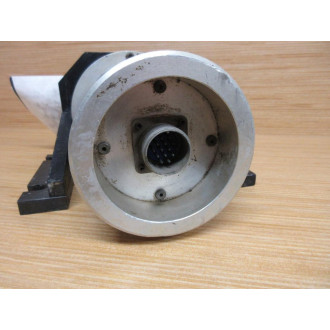

14 Male Pin Connection

Aluminum Housing

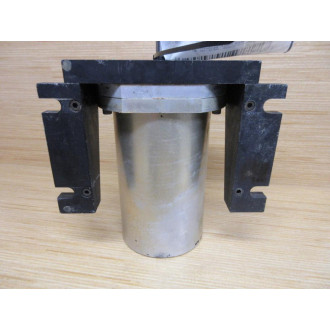

Foot Mount


Carlen Controls
174856-209095
1 Item
Condition
Used
