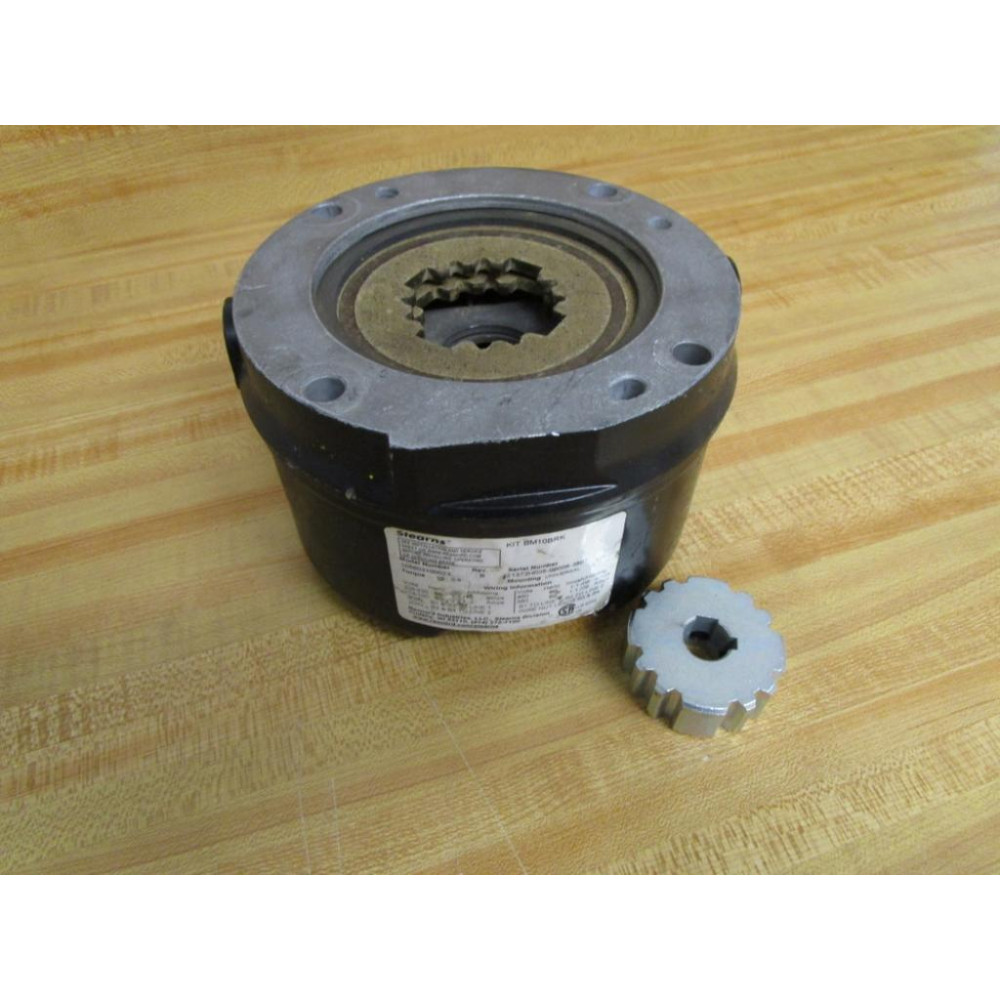

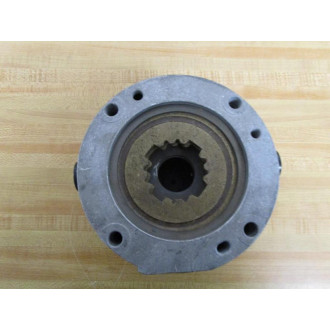

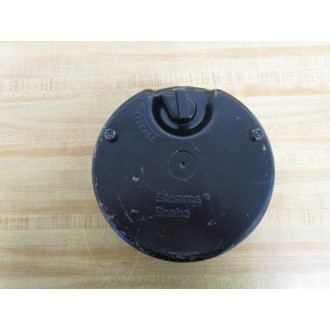

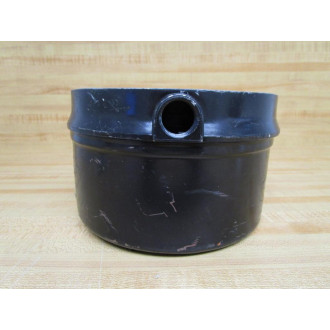

Stearns 105603100023 STD Brake W(2) Keyways - Used

Mounting: Universal

Torque: 10 lb-ft

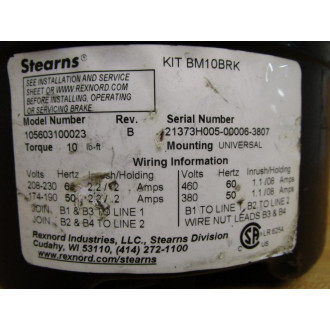

• Volts, Hertz, Inrush/Holding:
• 208-230, 60 2.2/.2 Amps
• 174-190, 50, 2.2/.2 Amps
• Join B1 & B3 To Line 1
• Join B2 & B4 To Line 2
•

• Volts, Hertz, Inrush/Holding:
• 460, 60, 1.1/.08 Amps
• 380, 50, 1.1/.08 Amps
• B1 To Line 1, B2 To Line 2
• Wire Nut Leads B3& B4
•

• (2) 1/2" Female NPT

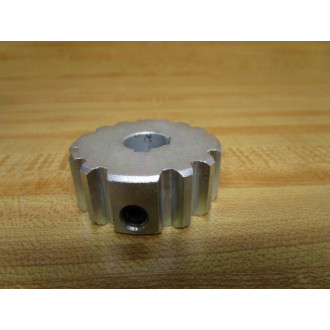

• Keyway 1/4" x 1/16"
• Keyway 3/16" x 1/8"
• 1" Bore
• Release Switch
