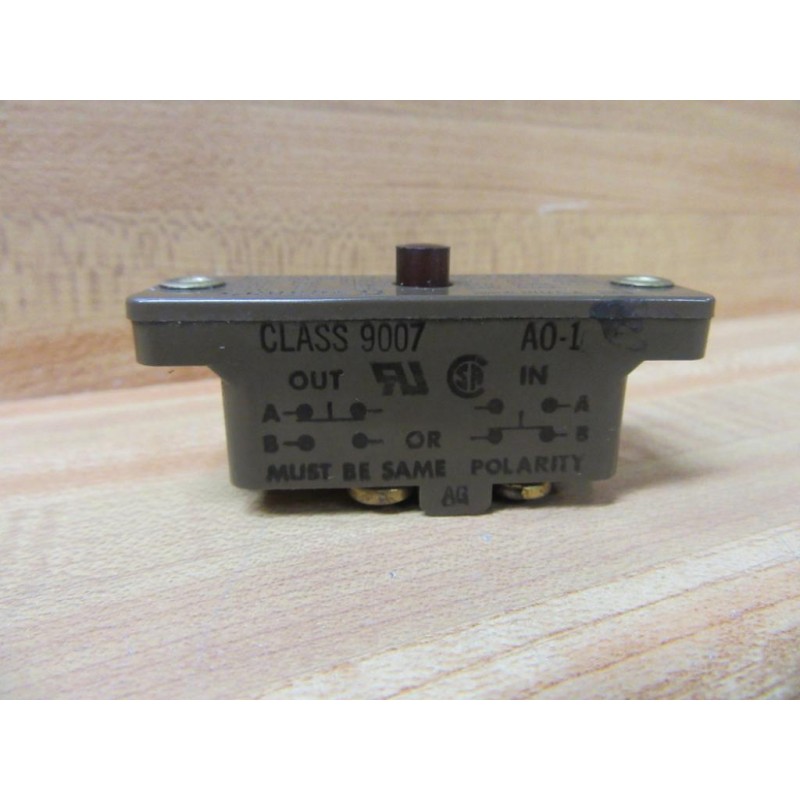

Square D 9007-AO1 Switch 9007A01 Old Stock Red Actuator - New No Box

PN: 9007-AO1
9007AO1

Class 9007 A0-1
Obsolete


Old Stock Red Actuator

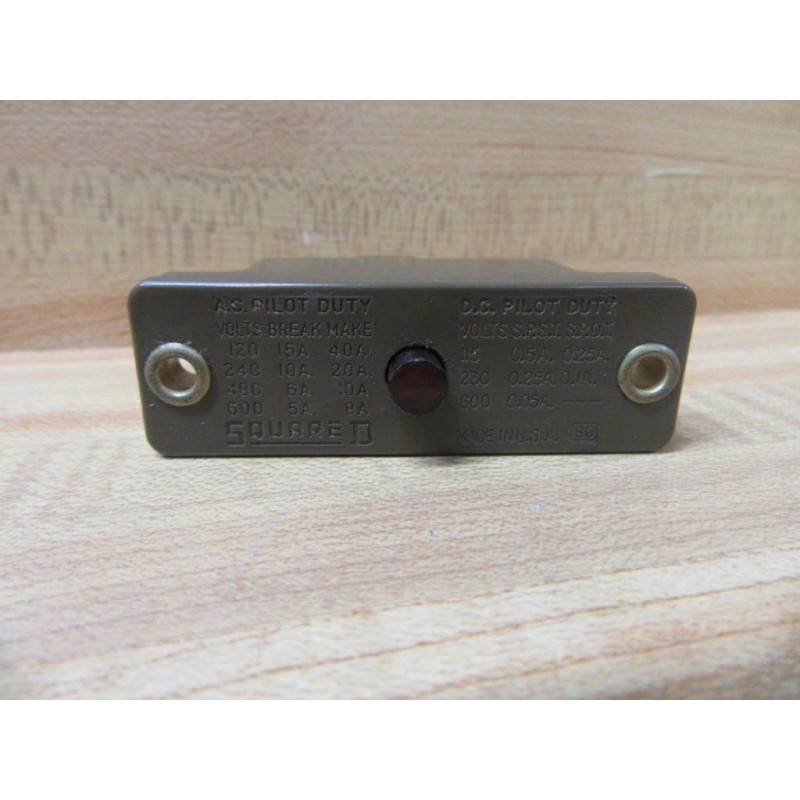

A.C. Pilot Duty
Volts 120 Break 15A. Make 40A.
Volts 240 Break 10A. Make 20A.
Volts 480 Break 6A. Make 10A.
Volts 600 Break 5A. Make 8A.
D.C. Pilot Duty
Volts 120 S.P.S.T. 0.5A. S.P.D.T. 0.25A.
Volts 240 S.P.S.T. 0.25A. S.P.D.T. 0.1A.
Volts 600 S.P.S.T. 0.05A.

D.C. Pilot Duty

115 0.5A 0.25A

230V 0.25A 0.1A

600V 0.05A
