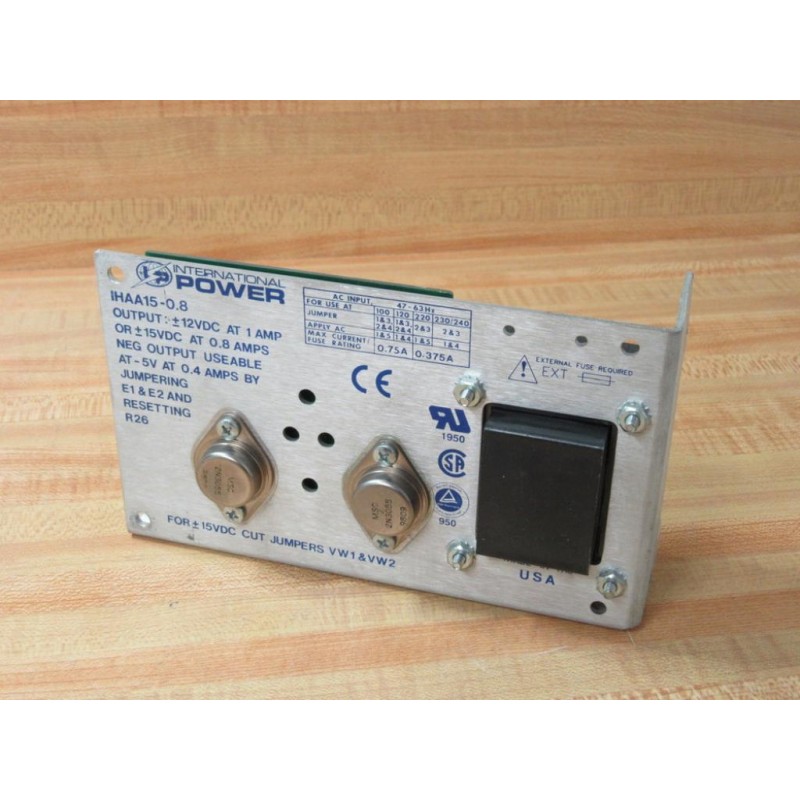

International Power IHAA15-0.8 Power Supply IHAA1508 - Used

International Power IHAA15-0.8 Power Supply IHAA1508 - Used

PN: IHAA15-0.8
IHAA1508

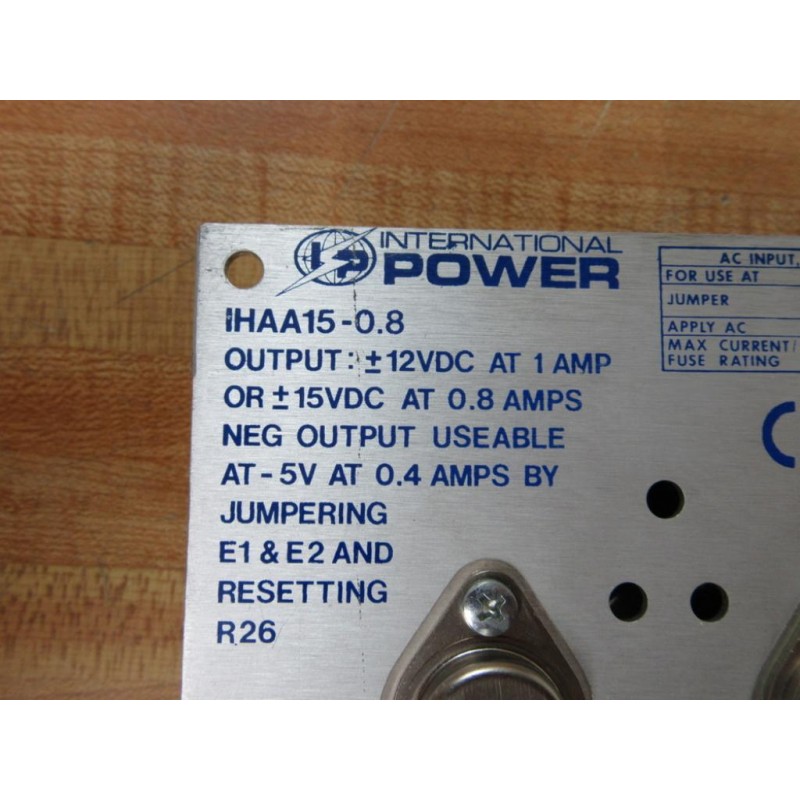

Output: ±12VDC @ 1 Amp Or ± 15VDC @ 0.8 Amps

Neg Output Useable At -5V @ 0.4 Amps By Jumpering E1 & E2 And Resetting R26

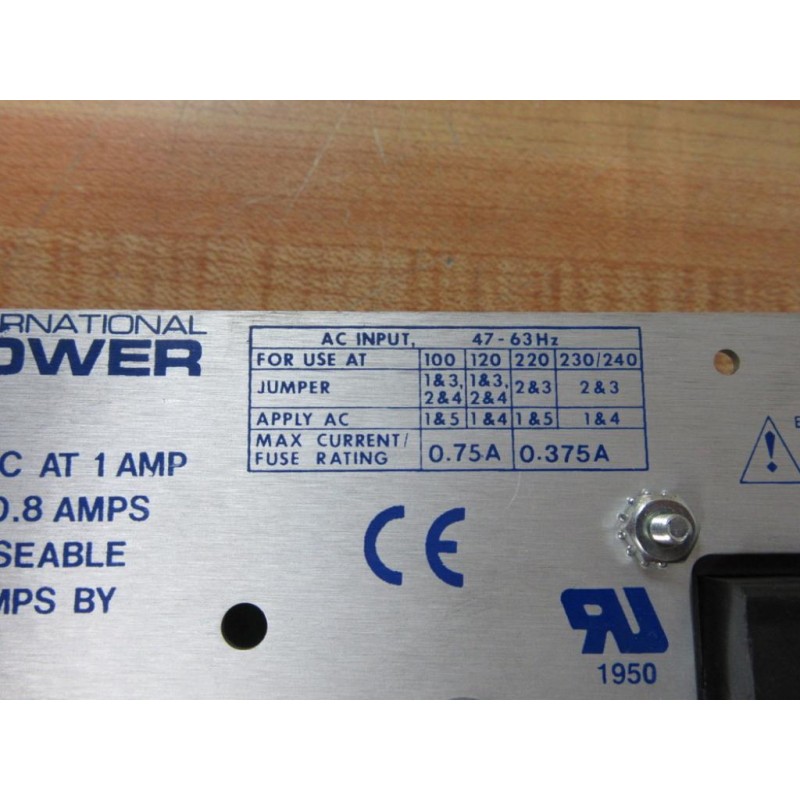

AC Input, 47-63 Hz

For Use At / Jumper / Apply AC / Max Current/Fuse Rating:

100 /1&3, 2&4 / 1&5 / 0.75A

120 / 1&3, 2&4 / 1&4 / 0.75A

220 / 2&3 / 1&5 / 0.375A

230/240 / 2&3 / 1&4 / 0.375A

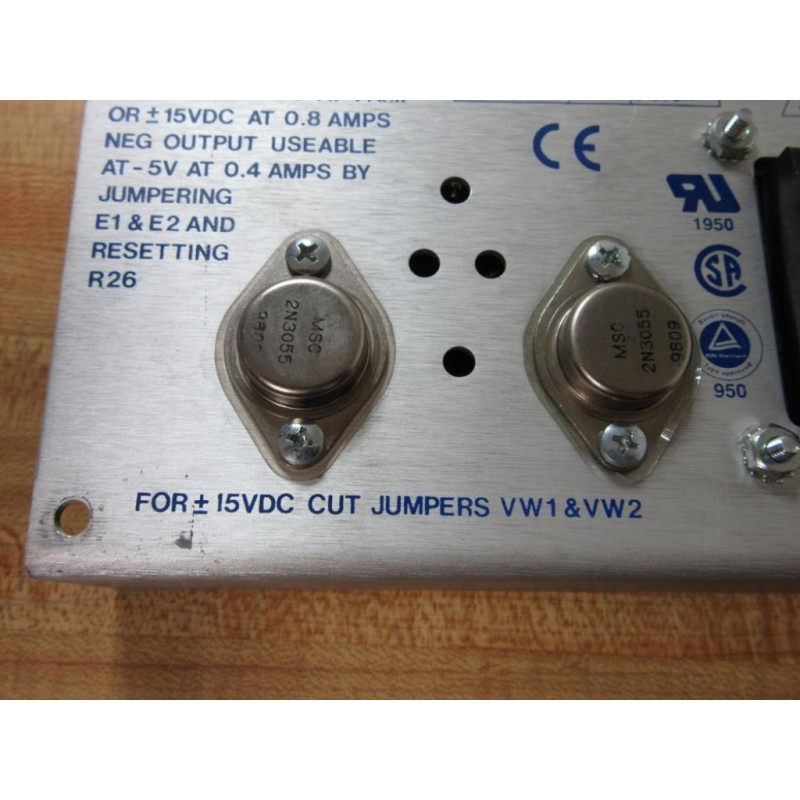

For ± 15VDC Cut Jumpers VW & VW2

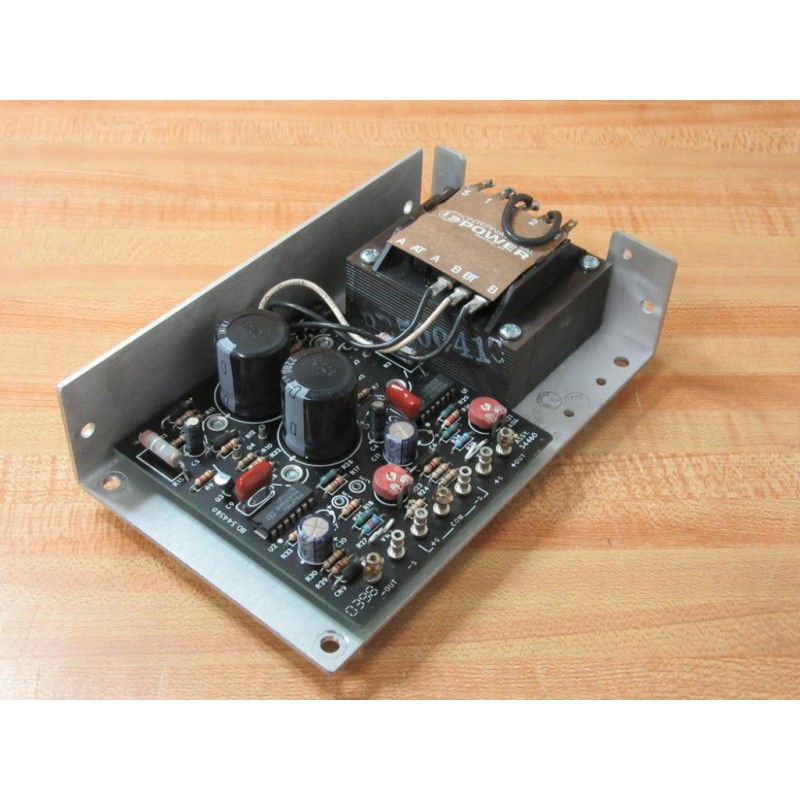

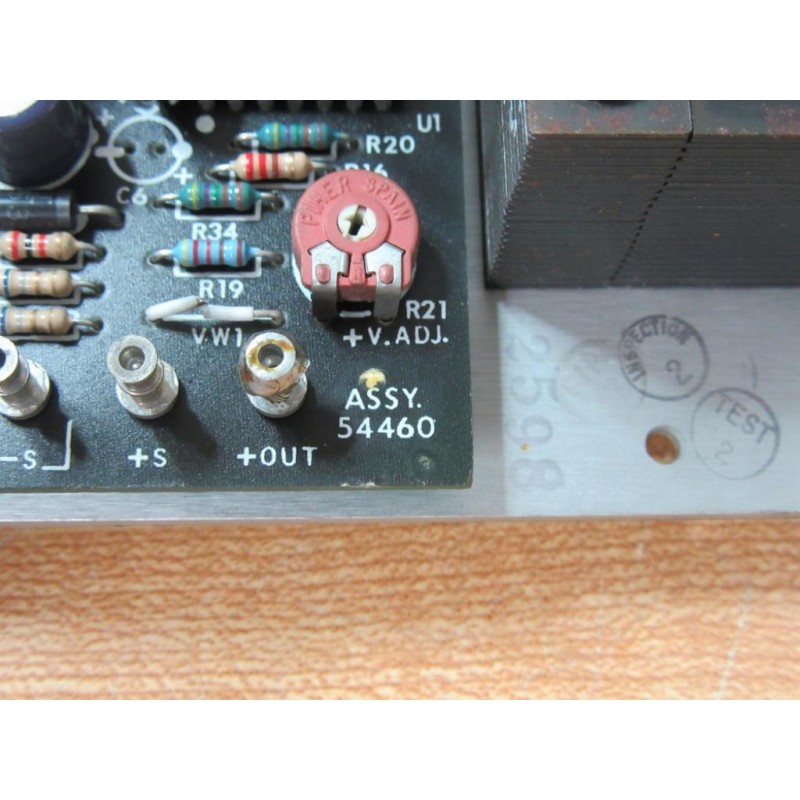

Board Assembly Number: 54460

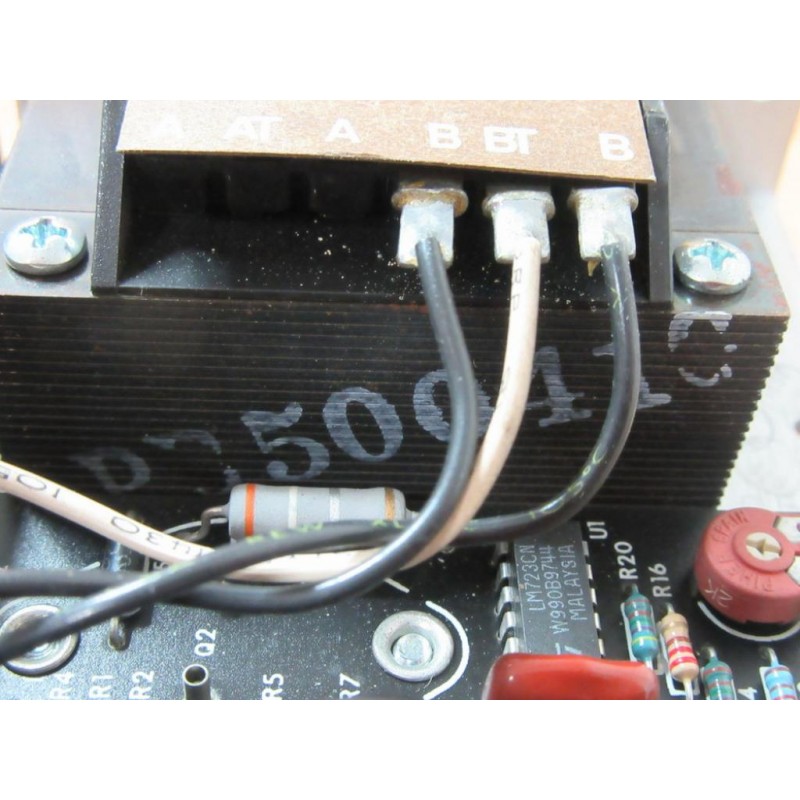

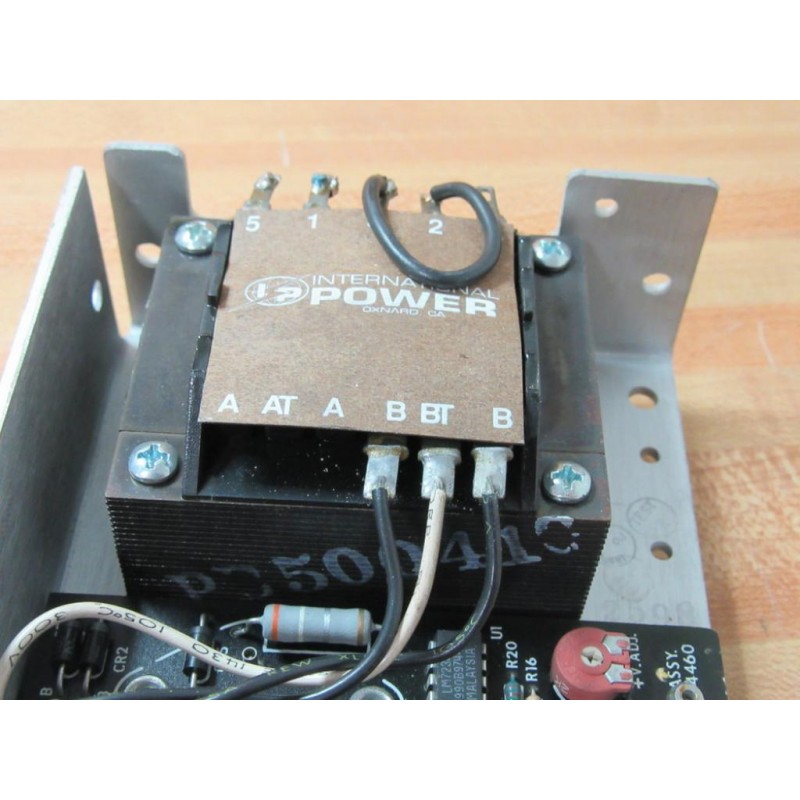

Transformer P/N: P350041C
