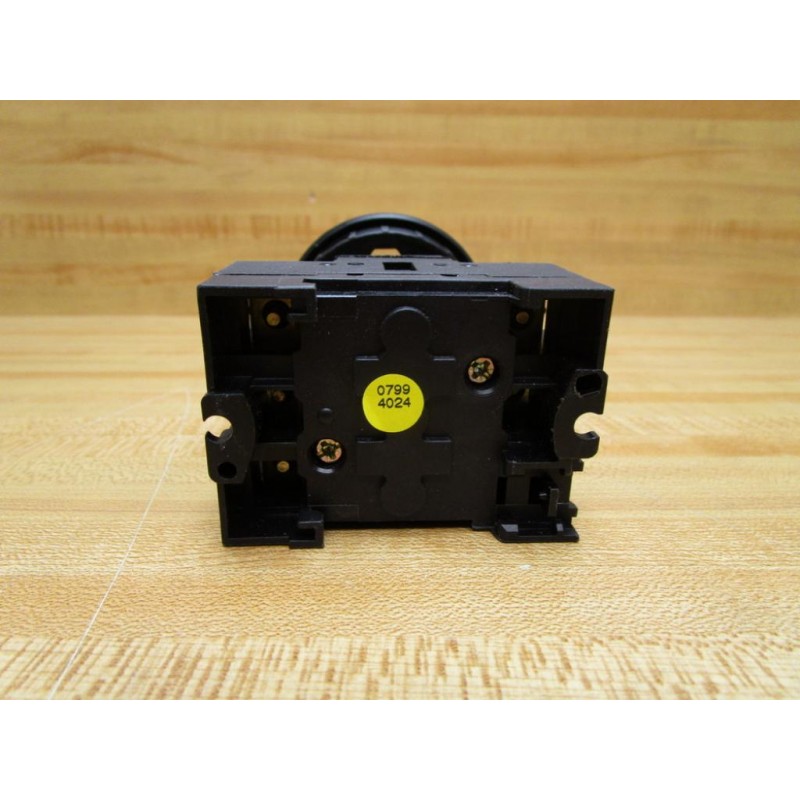

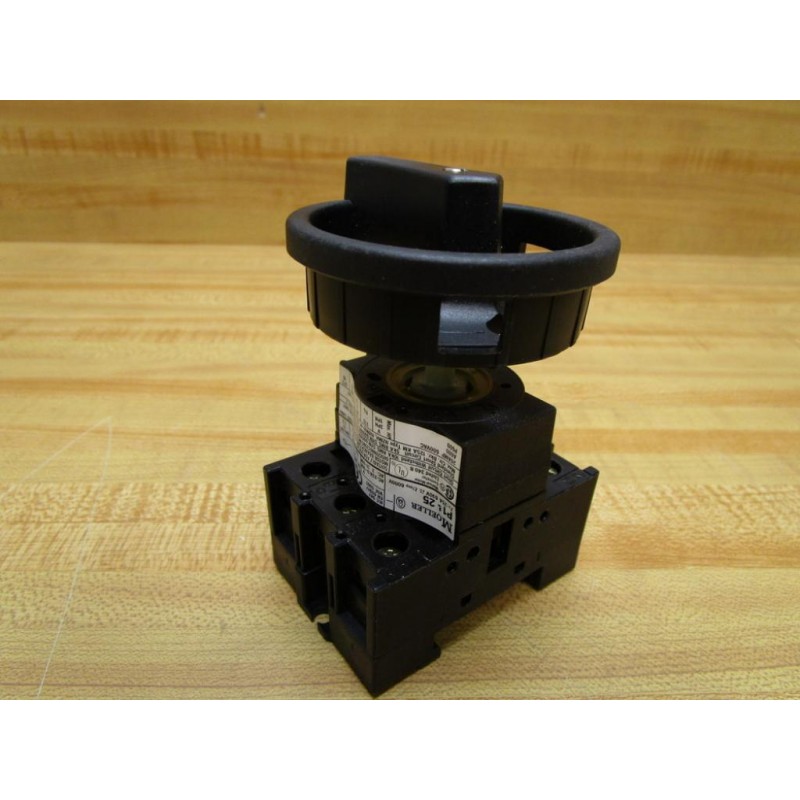

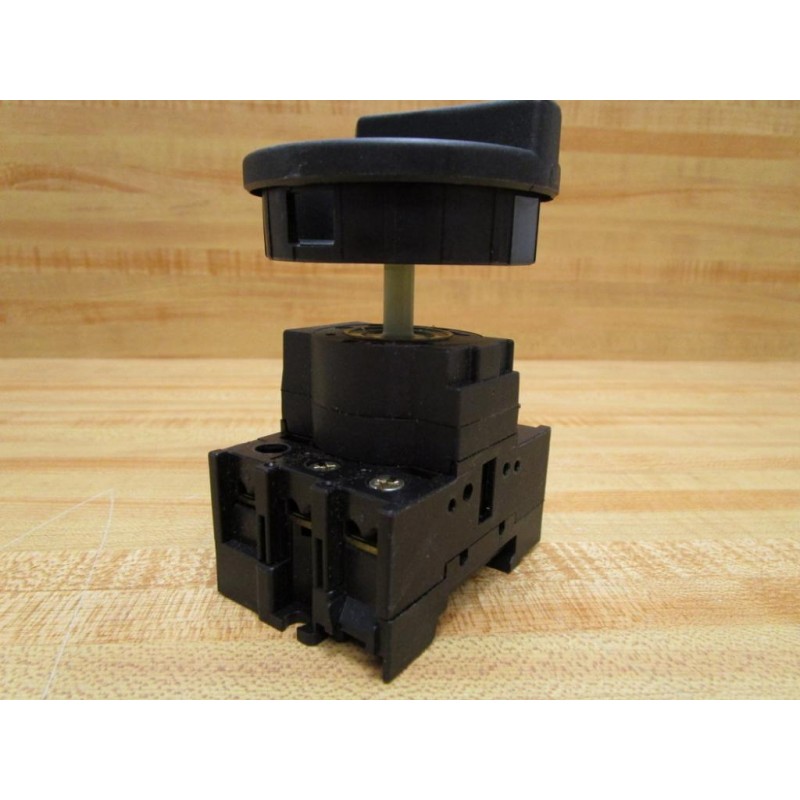

Moeller P1-25 Disconnect Switch Base P125 WSwitch - New No Box
54883-197024
P1-25
This product is no longer in stock
More info
Moeller P1-25 Disconnect Switch Base P125 W/Switch - New No Box
PN: P1-25
P125
Disconnect Switch Mounting Base

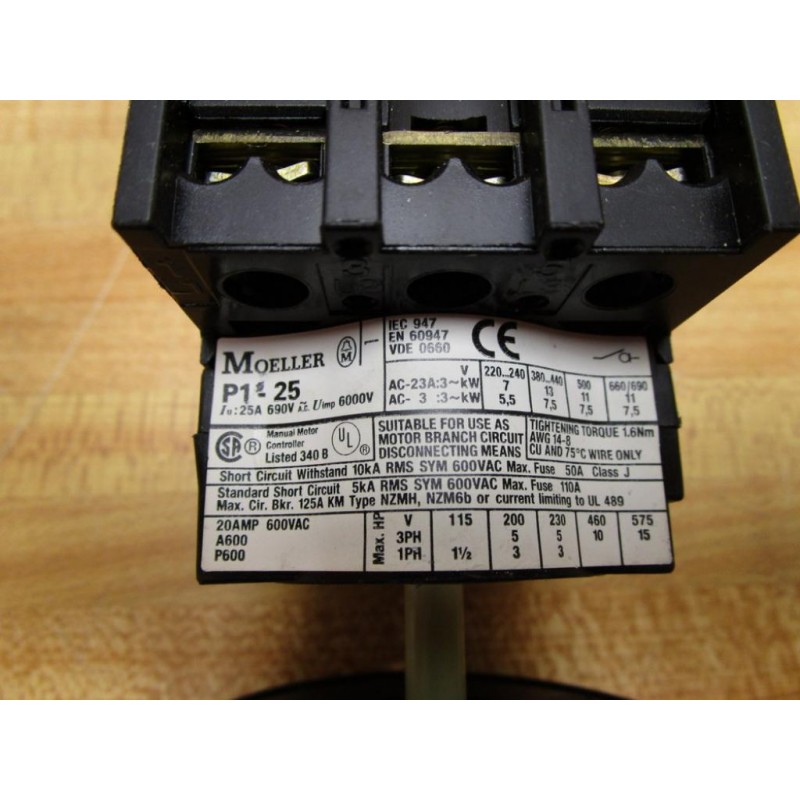

Ui: 25A 690Vac
Uimp: 6000V
50/60Hz
V 220-240 380-440 500 660-690
C-23A: 3-kW 7 13 11 11
Short Circuit Withstand 10kA RMS SYM 600Vac Max. Fuse 50A Class J
Standard Short Circuit 5kA RMS SYM 600Vac Max. Fuse 110A
Max Cir Bkr. 125A kM Type NZMH, NZM6B Or Current Limiting To UL 489

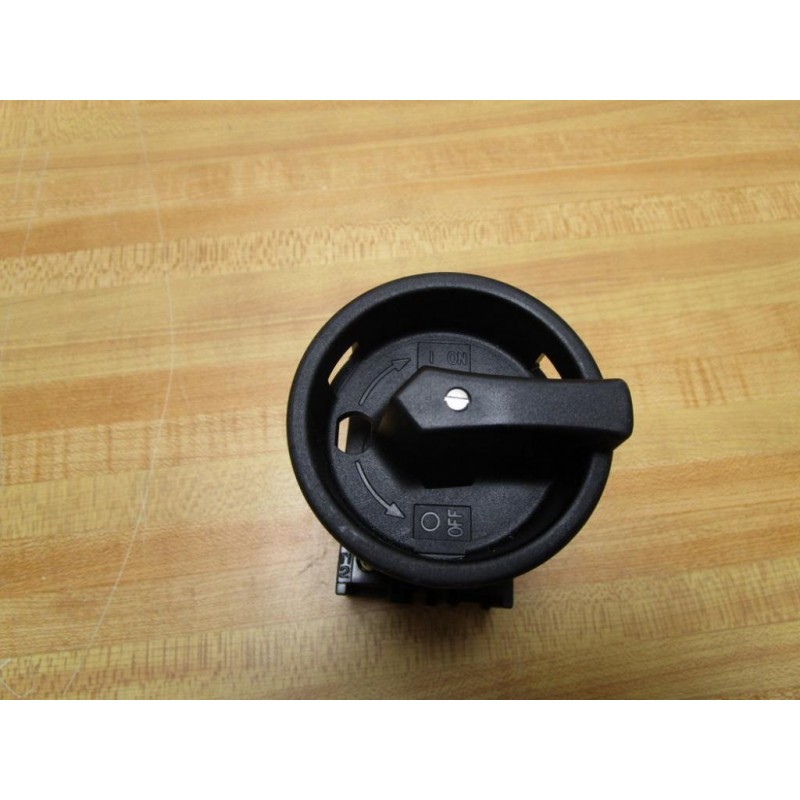

W/Switch: 2 Position (On/Off)
PN: P1-25
P125
Disconnect Switch Mounting Base
Ui: 25A 690Vac
Uimp: 6000V
50/60Hz
V 220-240 380-440 500 660-690
C-23A: 3-kW 7 13 11 11
Short Circuit Withstand 10kA RMS SYM 600Vac Max. Fuse 50A Class J
Standard Short Circuit 5kA RMS SYM 600Vac Max. Fuse 110A
Max Cir Bkr. 125A kM Type NZMH, NZM6B Or Current Limiting To UL 489
W/Switch: 2 Position (On/Off)
