> Hardware & Kits>HeliCoil 1185-160N2000 Insert (Pack of 29) - New No Box
HeliCoil 1185-160N2000 Insert (Pack of 29) - New No Box View larger
Previous Next

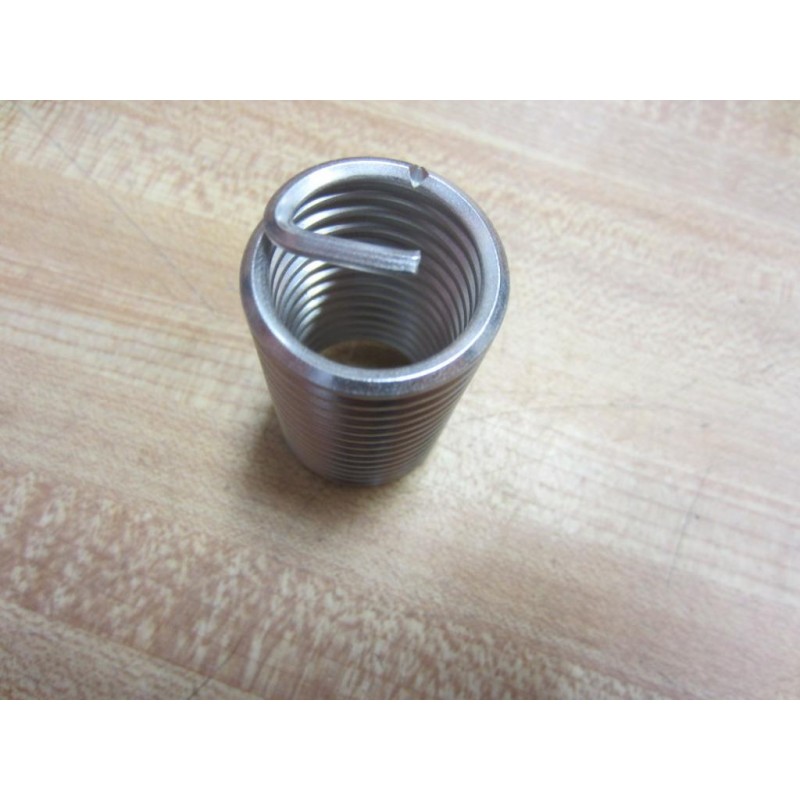

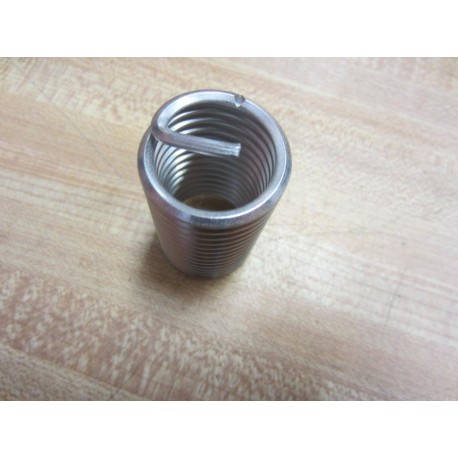

HeliCoil 1185-160N2000 Insert (Pack of 29) - New No Box

74657-81298

New

1185-160N2000

More details

1 Item

In Stock

Warning: Last items in stock!

$35.77

More info

HeliCoil 1185-160N2000 Insert (Pack of 29) - New No Box

PN: 1185-160N2000
1185160N2000

1
Specifications

Thread Size

#6-32

Material

304 Stainless Steel

Type

Free Running, Coarse

Thread Size Inch

.138 in

Coatings/Plating

None

Outside Diamater Min.

.178 in

Outside Diamater Max.

.193 in

Q - Nominal Length

.207 in

Packaging

Bulk

Number of Coils

4-3/4


Tapping Data

Minor Diameter Min.

.145 in

Minor Diameter Max.

.153 in

M - Countersink Diameter Min.

.180 in

M - Countersink Diameter Max.

.210 in

Pitch Diameter Min.

.158 in

Pitch Diameter Max. - Class of Fit 3B

.160 in

Pitch Diameter Max. - Class of Fit 2B

.161 in

H - Minimum Tapping Depth

.240 in

Tap Major Diameter Max.

.182 in

P - Thread Pitch

.031 in


Drilling Data

Suggested Drill Size - Aluminum

#26

Suggested Drill Size - Aluminum Inch

.147 in

Suggested Drill Size - Steel, Magnesium, Plastic

#25

Suggested Drill Size - Steel, Magnesium, Plastic Inch

.150 in

F - Minimum Drilling Depth for Plug Taps

.464 in

F - Minimum Drilling Depth for Bottoming Taps

.332 in
