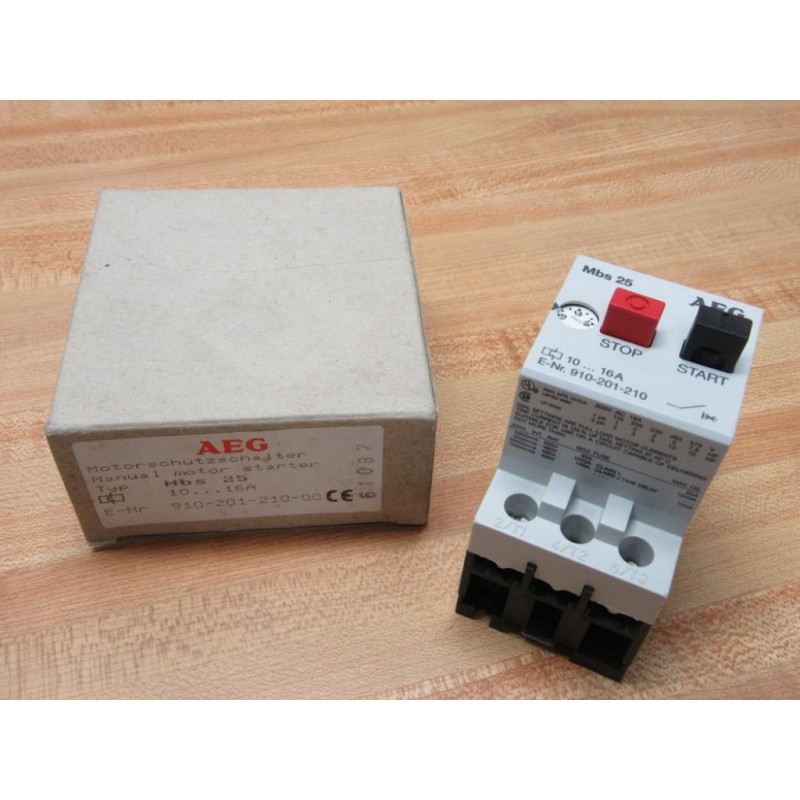

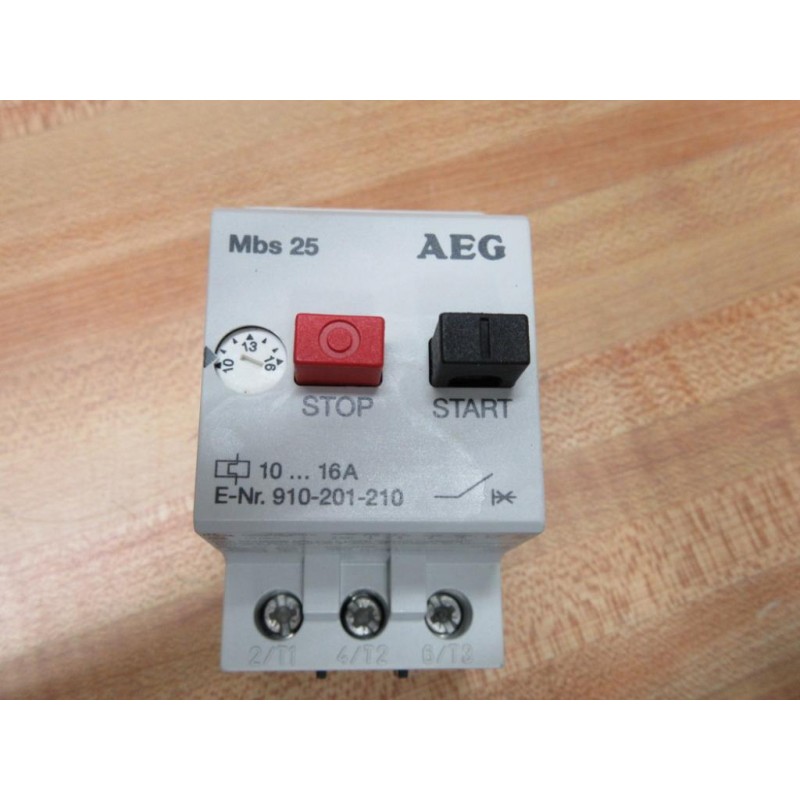

AEG 910-201-210 Starter MBS25 10-16A 910-201-210-000

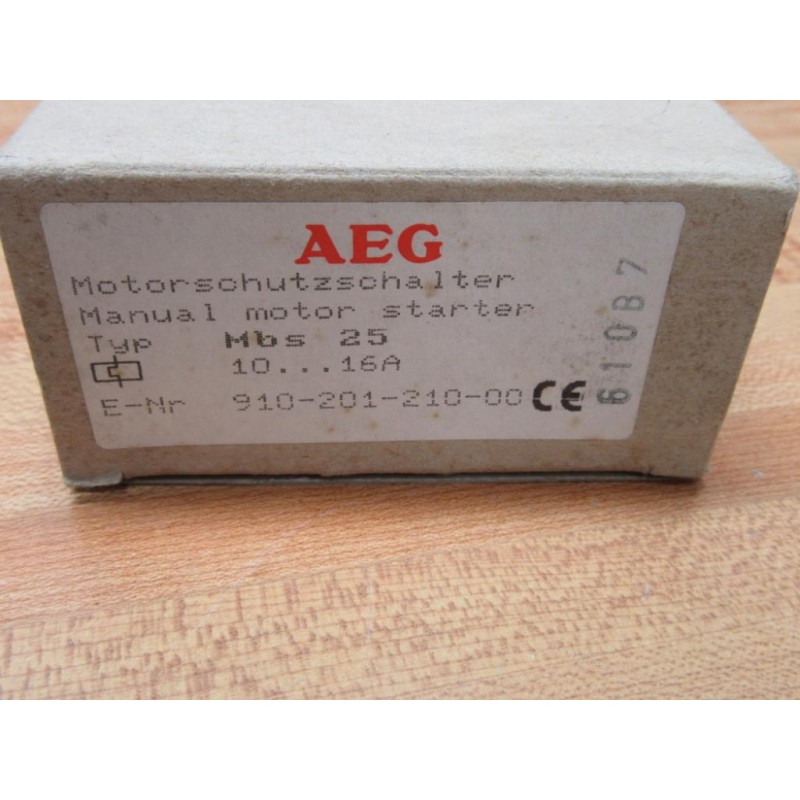

E-Nr 910-201-210-00

910-201-210-00

254266

UPC: 4022903542667

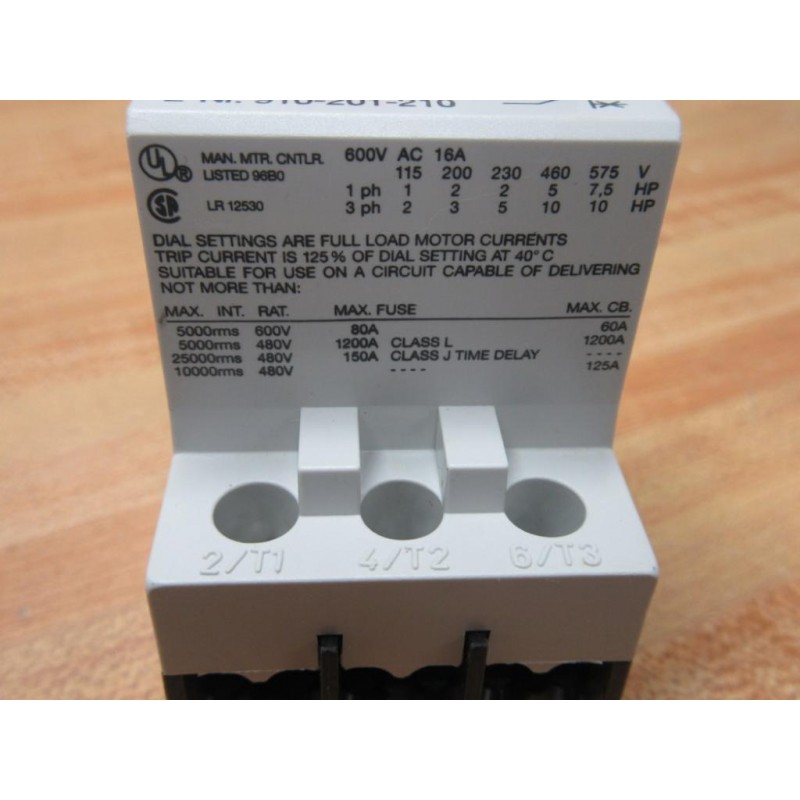

Man Mtr Cntlr. 600V AC 16A
Listed 96B0 115 200 230 460 575 V
1Ph 1 2 2 5 7,5 HP
3Ph 2 3 5 10 10 HP

Dial Settings Are Full Load Motor Currents
Trip Current Is 125% Of Dial Setting At 40°C
Suitable For Use On A Circuit Capable Of Delivering Not More Than:

Max. Int.
5000RMS
5000RMS
25000RMS
10000RMS

Rating
600V
480V
480V
480V

Max Fuse:
80A
1200A Class L
150A Class J Time Delay

Max CB.
60A
1200A
----
125A

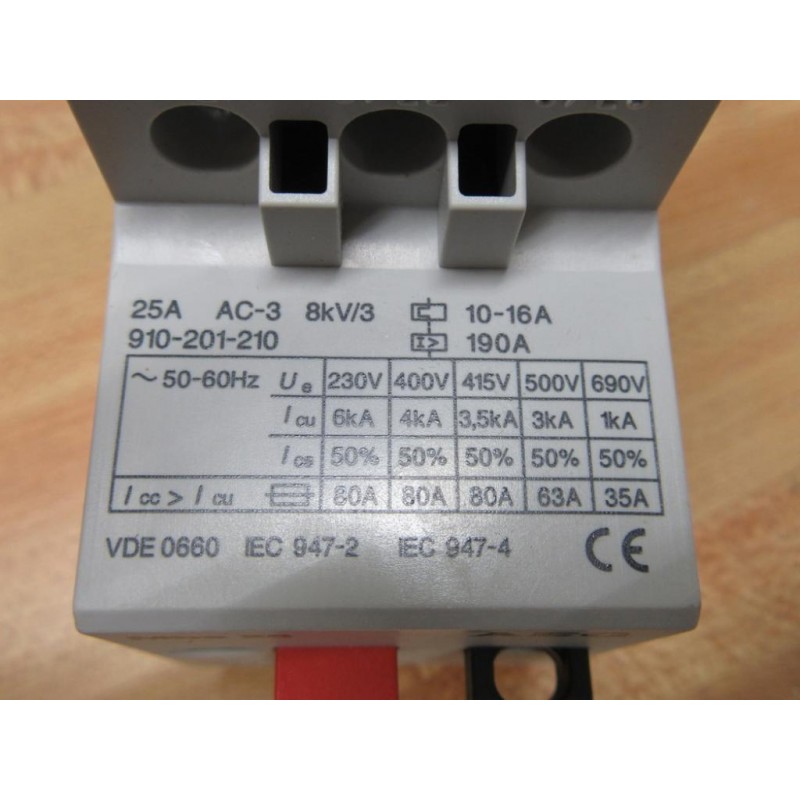

25A AC-3 8kV/3 10-16A 190A

50-60Hz
Ue 230V 400V 415V 500V 690V
Icu 6kA 4kA 3,5kA 3kA 1kA
Ics 50% 60% 50% 50% 50%
Icc > Icu 80A 80A 80A 63A 35A

VDC 0660 IEC -47-2 IEC 947-4

Obsolete
