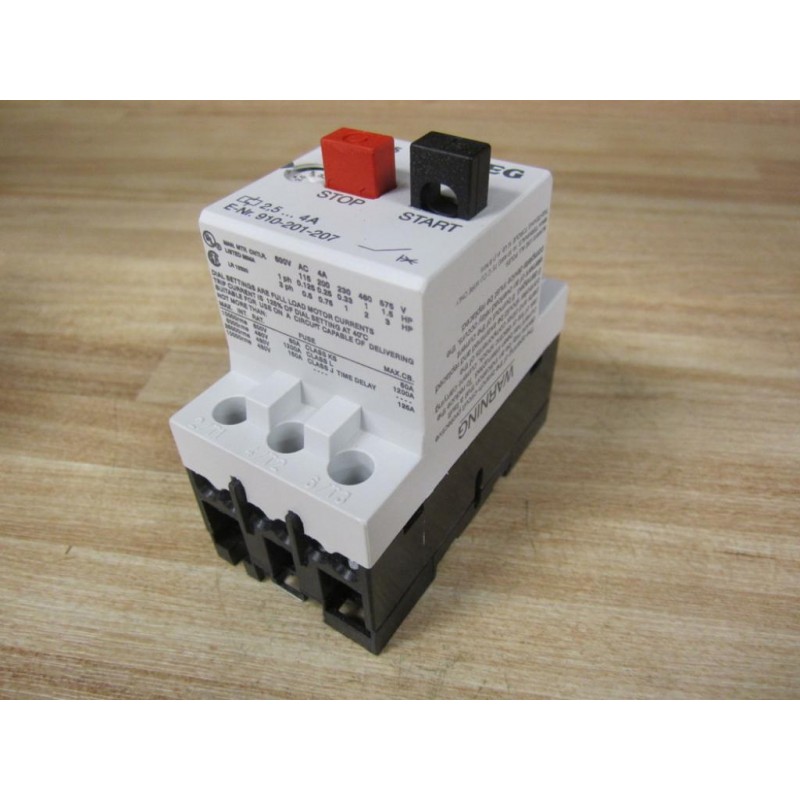

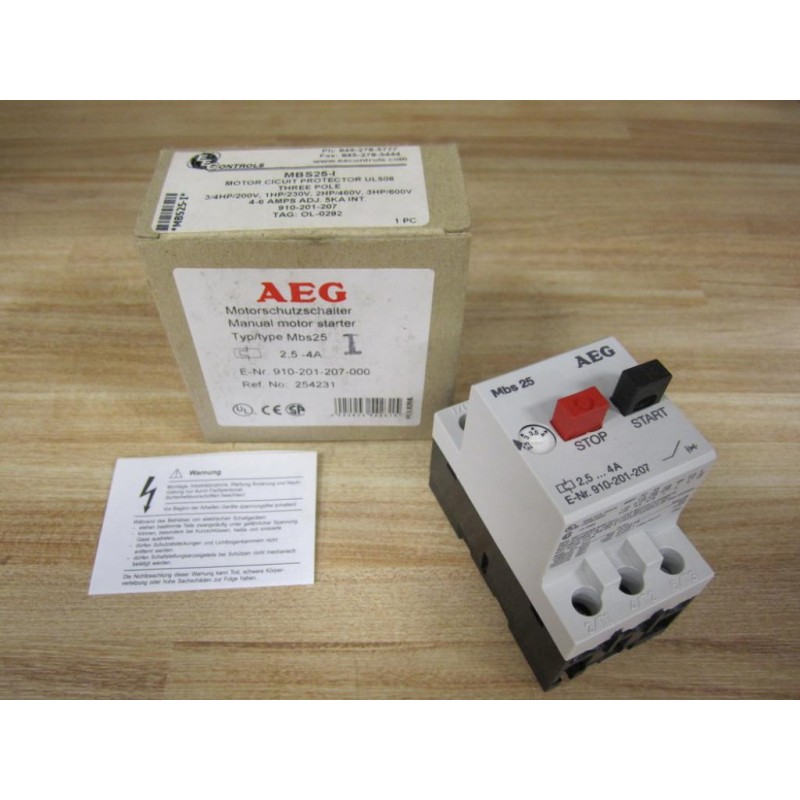

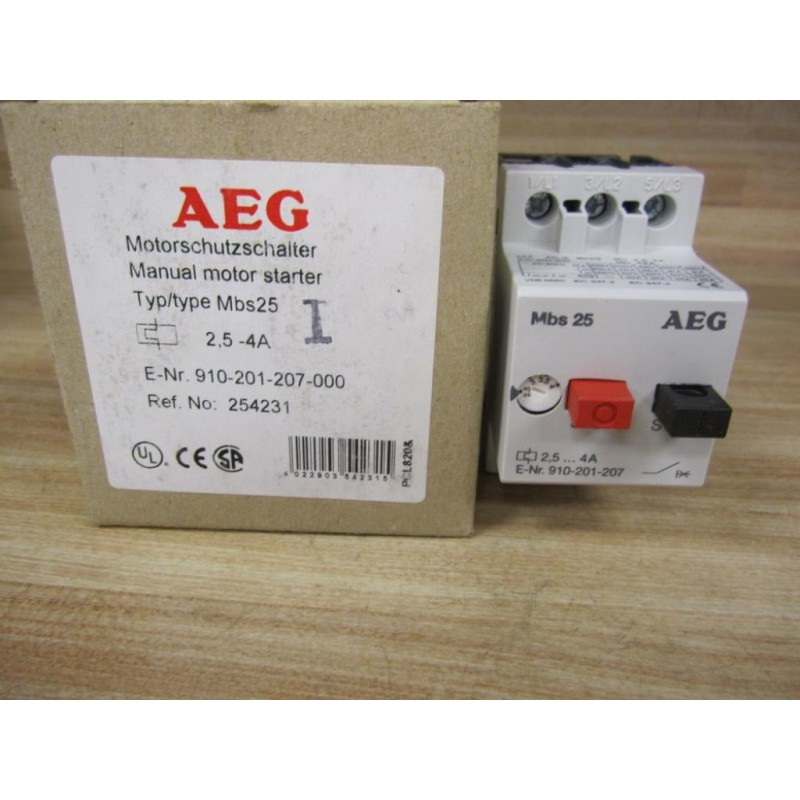

AEG 910-201-207 2,5- 4A MBS25 Starter 901-201-207-000

AEG 910-201-207 2,5- 4A MBS25 Starter 901-201-207-000

PN: 910-201-207 2,5- 4A
910201207 25 4A
910-201-207-2,5--4A

254231

Mbs 25
2,5 ... 4A

Man Mtr Cntlr 600V AC 4A
Listed 96B0 115 200 230 460 575 V
1 Ph 0.125 0.25 0.33 1 1.5 HP

Dial Settings Are Full Load Motor Currents

Trip Current Is 125% Of Dial Setting At 40°C

Suitable For Use On A Circuit Capable Of Delivering Not More Than:

Max.Int Rat Max Fuse Max CB
10000RMS 600V Class K5 50A
5000RMS 480V 1200A Class L 1200A ----
10000RMS 480V 150A 125A
5000RMS 480V 150A Class J Time Delay

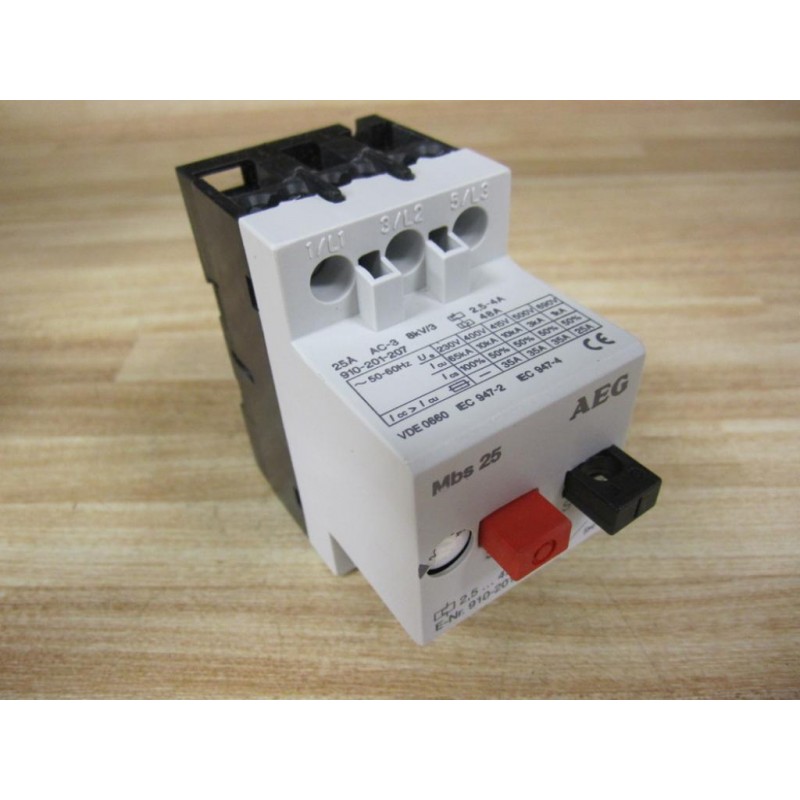

25A AC-3 8kV/3 2,5-4A
910-201-207 48A

~50/60Hz
Ue 230V 400V 415V 500V 690V
Icu 65kA 10kA 10kA 3kA 1kA
Ics 100% 50% 50% 50% 50%
Icc>Icu 35A 35A 35A 25A

VDC 0660
IEC 947-2
IEC 947-4

UPC:4022903542315
