PCB 269-00004 CSM Circuit Board wResolver PCB 26900004 - Used

PCB 269-00004 CSM Circuit Board w/Resolver PCB 26900004 - Used

PN: PCB 269-00004
PCB 26900004
PCB-269-00004

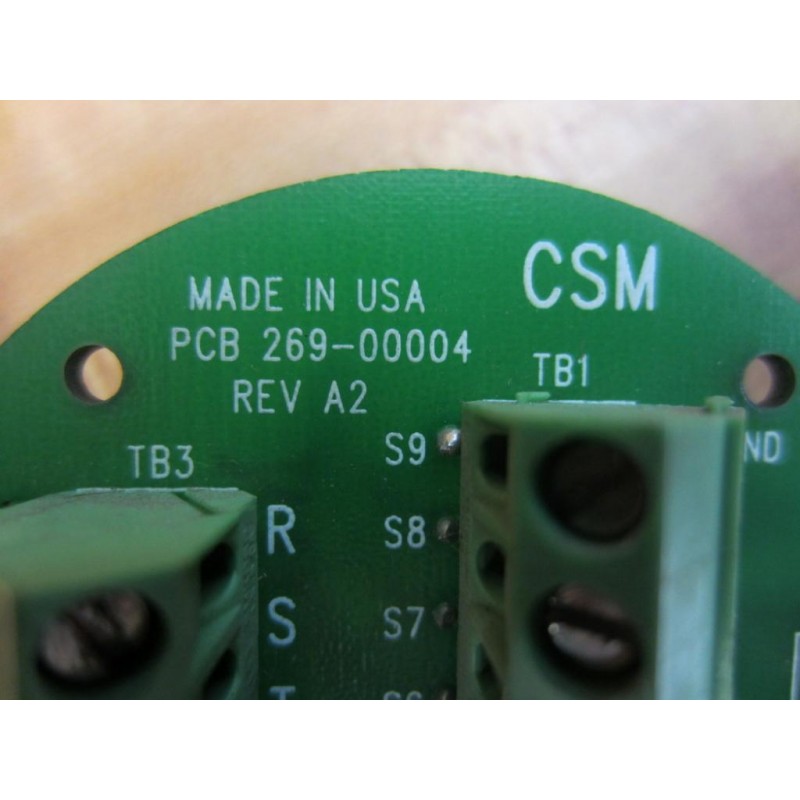

PCB 269-00004 Rev.A2

PCB26900004

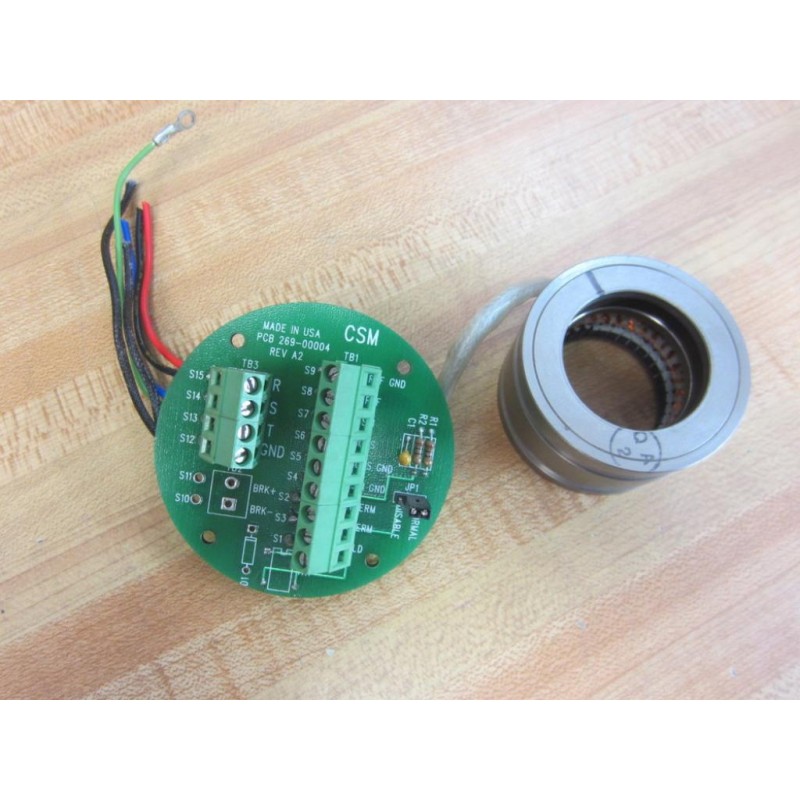

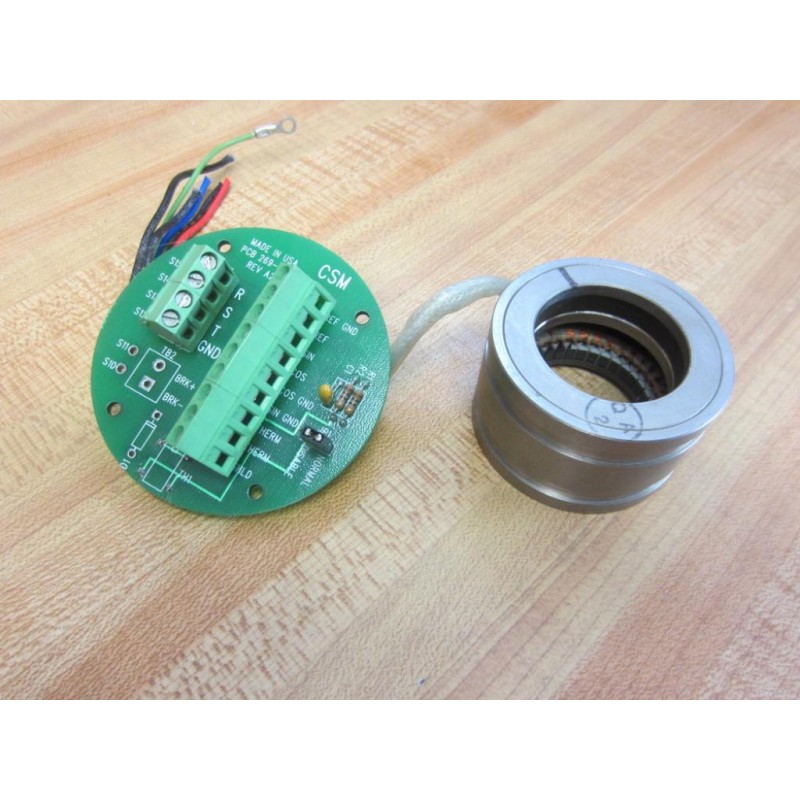

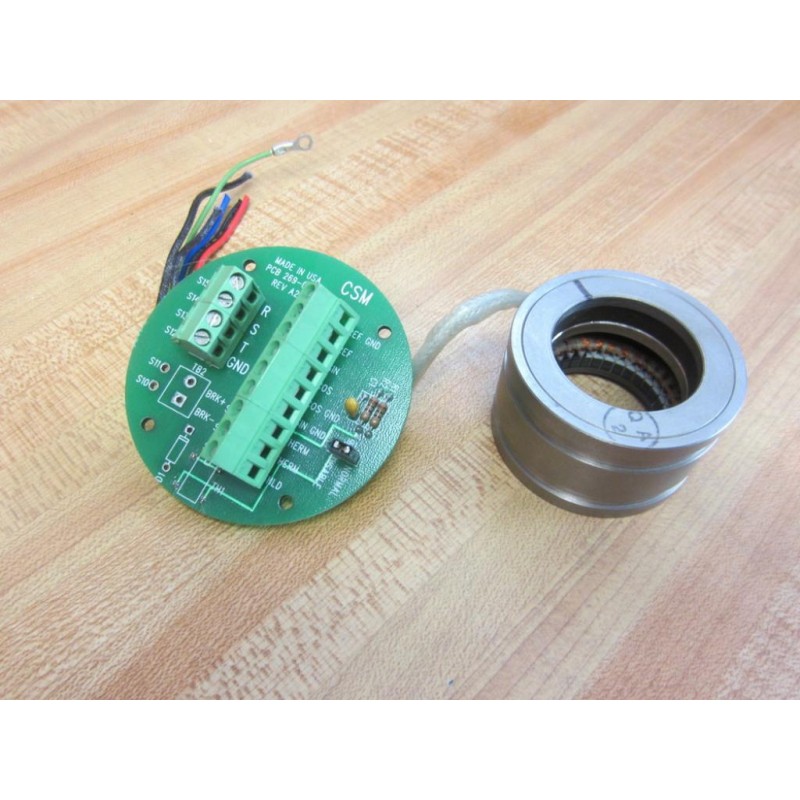

Board has 9 & 4 Screw Terminals, 4-wire & 2-wire Leads and a 7-wire Cable Lead to Resolver

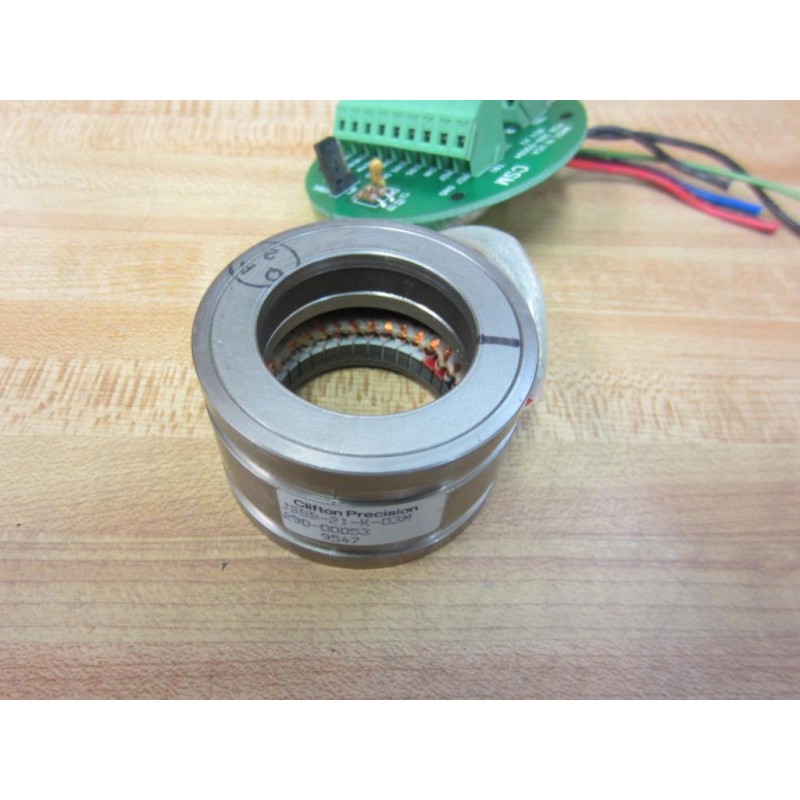

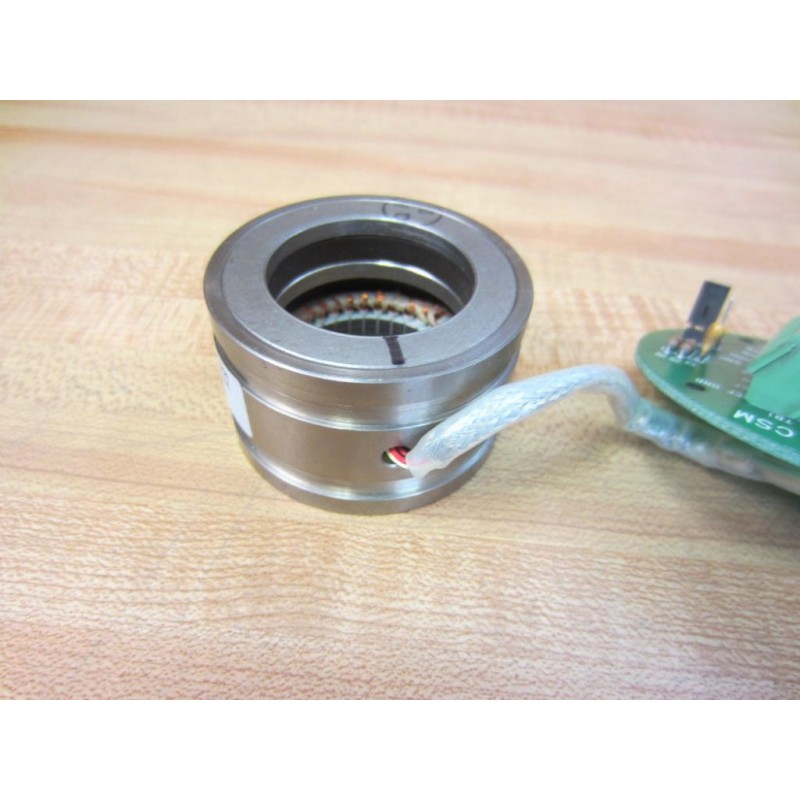

PCB is Connected to Resolver/Encoder (Clifton Precision: JSSB-21-K-D3M /290-00053)

PCB for Brake,Thermostat & Resolver Connections of Parker Brushless Rotary Servo Motor

TB2: Brake Connection

TB1: Resolver and Thermostat Connection
